Self-propelled modular transporter

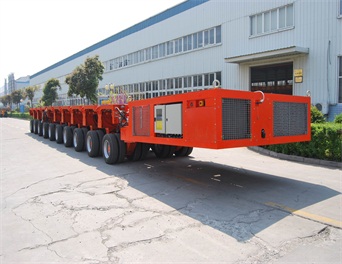

3-meter-wide SPMT

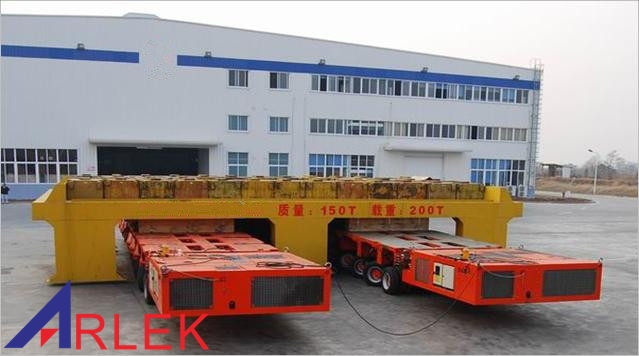

The self-propelled modular transporter (SPMT) is a high-end product derived from the hydraulic combination trailer, which can realize the self-propelled function without the traction of a tractor. It is composed of a driven 4-axle modular transporter, a driven 6-axle modular transporter and a power modular unit (PPU), the modulars can be mechanically connected, and can be located freely so as to transport the goods up to tens of thousands of tons.
Performance features:
● High-end product derived from the hydralic combination trailer.
● It has its own power, no need tractors.
● It is composed of 6-axle modular transporter, 4-axle modular transporter and PPU.
● The modulars can be combined in parallel, T-shape, Y-shape, V-shape and ring-shape.
● The modulars can be mechanically connected, and can be located freely.
●It employs transverse driving mode, ordinary driving mode, front-axle steering mode, rear-axle steering mode, oblique and 90 degree angular or circle around mode.
For inquiry
Product details
1. PPU employs world famous brand engine, such as MANN, DEUTZ, BENZ and CUMMINS and it can be customized and configured according to the actual needs of user's.
2. Main parameters
| Qty of axle line | 4 | 6 |
| Speed(km/h) | 5 | 1 | 5 |
| Max.mass(kg) | 136000 | 216000 | 204000 |
| Curb mass（kg） | 16000 | 24000 | 24000 |
| Rated load(kg) | 120000 | 192000 | 180000 |
| Per axle line load(kg) | 34000 | 36000 | 34000 |
| Per bogies load(kg) | 17000 | 18000 | 17000 |
| Qty of driving axle line | 1 or 2 | 2 |
| Total length（mm） | 6000 | 9000 |
| Total width(mm) | 3000 | 3000 |
| Empty load height(mm) | 1280±300 | 1280±300 |
| Wheelbase（mm） | 1500 | 1500 |
| Wheeltread(mm) | 1800 | 1800 |
| Tire | 215/75R17.5 | 215/75R17.5 |
| Qty of tire | 32 | 48 |
| Wheel turning angle | ±110° | ±110° |
| Tracting force(Kn) | 120 or 240 | 240 |
| Suspension type | Hydraulic 3 or 4 points support |
| Steering mode | Eletronic controlled multi-direction steering |
