Self-propelled platform transporter

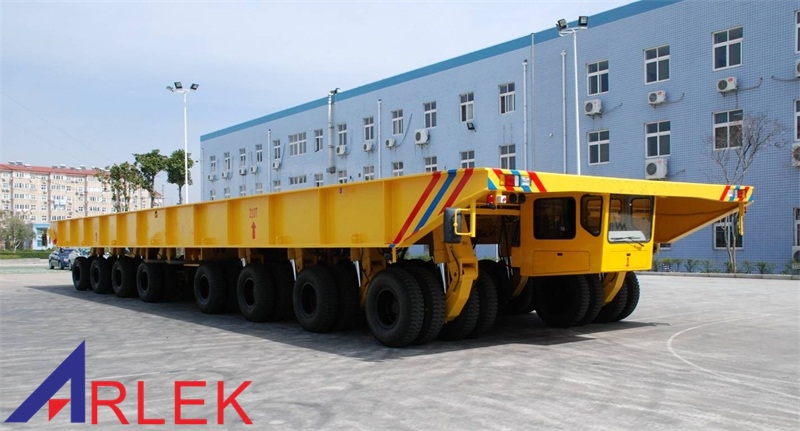

Heavy-duty flatbed transporter

The heavy-duty flatbed trasporter adopts the technology such as hydraulic drive, hydraulic suspension, independent steering and frame hydraulic levelling. Both the drive system and steering system are controlled by microcompter. A single transporter consists of transporter flatbed, drive suspension, driven suspension, engine power packing unit, hydraulic lifting system, hydraulic driving system, hydraulic steering system, hydraulic oil supply unit, braking system, driver's cab and co-driver's cab, transporter power supply system and microcomputer control system.

The carrying capacity is from 35tons to 100tons, mainly used in ship hull section transportation in shipyard, as well as large structural parts transportation.

This product is non-standard product and can be designed and manufactured as per the user's demand.

For inquiry

Product details


Model

Rated load

(t)


Curb mass

(t)


Dimensions

(m)


Min. platform height

(mm)


Qty of bogies

Axle load

(t)


Tire

No load speed

Over load speed

Over load grade ability

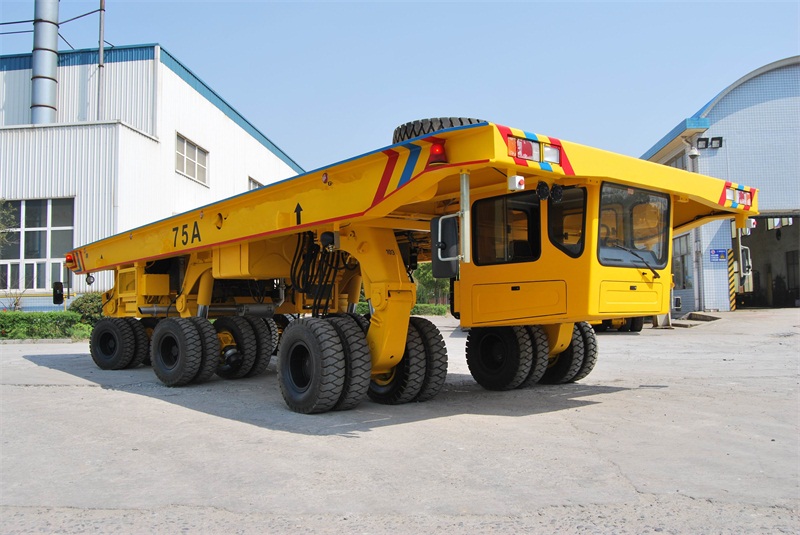

75A 75 24 11x5 1400 6 16 8.25-15 12-15km/h 6-8km/h 6-8%
100A 100 28 12x5 1400 8 16 8.25-15 12-15km/h 6-8km/h 6-8%
125A 125 35 13x5 1400 10 16 8.25-15 12-15km/h 6-8km/h 6-8%
150A 150 40 14.5x5.1 1400 12 16 8.25-15 12-15km/h 6-8km/h 6-8%
175A 175 48 16x5.1 1400 14 16 8.25-15 12-15km/h 6-8km/h 6-8%
200A 200 52 18x5.1 1400 16 16 8.25-15 12-15km/h 6-8km/h 6-8%
100B 100 24 12x5.1 1600 4 32 12.00-20 12-15km/h 6-8km/h 6-8%
150B 150 36 14.5.1 1600 6 32 12.00-20 12-15km/h 6-8km/h 6-8%
200B 200 43 14.8x5.1 1600 8 32 12.00-20 12-15km/h 6-8km/h 6-8%
250B 250 52 16x6.1 1600 10 32 12.00-20 12-15km/h 6-8km/h 6-8%
320B 320 60 18x6.1 1600 12 32 12.00-20 12-15km/h 6-8km/h 6-8%
380B 380 68 20x6.1 1600 14 32 12.00-20 12-15km/h 6-8km/h 6%
420B 420 85 23x6.1 1600 16 32 12.00-20 10-12km/h 4-6km/h 6%
480B 480 94 25x6.1 1600 18 32 12.00-20 10-12km/h 4-6km/h 6%
530B 530 110 24.5x7 1600 20 32 12.00-20 10-12km/h 4-6km/h 6%
90C 90 35 14x4 1600 6 22.5 10.00-20 12km/h 6km/h 6%
135C 135 42 16x4 1600 8 22.5 10.00-20 12km/h 6km/h 6%
175C 175 50 19x4 1600 10 22.5 10.00-20 12km/h 6km/h 6%
90Y 90 35 13x6.5 1400 8 16 10km/h 6%
100Y 100 40 15.5x4 1400 10 16 1km/h 4%
