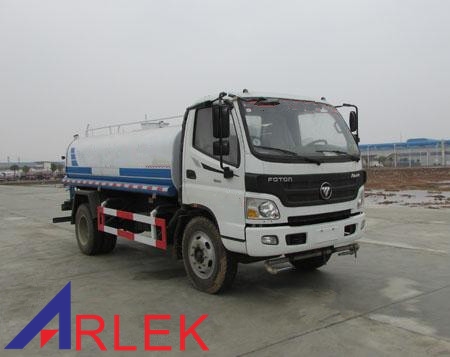

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 7060×2148×2600 | ||
| Total mass | 11995 |
|
|
| Rated load | 7000 |
|
|
| Curb mass | 4800 |
|
|
| Approach/departure angle | 22/14 | Front/rear overhang | 1185/2075 |
| Number of axle | 2 | Wheel base | 3800 |
| Axle load | 4200/7795 | Max. driving speed | 95 |
| Remarks | Tank effective volume:7.35 cubic meters Tank overall dimensions (length×long axis×short axis）（mm）：4400×1900×1200; The side protection and rear protection adopt Q235 cold forming steel, the side protection adopts bolted connection, where the rear connection adopts welded connection. The section size is 100×50mm/320×50mm，and the lower edge is 470/550mm above the ground. | ||
| Chassis | |||
| Chassis brand | DFAC | Chassis model | EQ1110SJ8BDC |
| Overall dimensions |
| ||
| |
| ABS | ABS model: 44600XXXX0 WEBCO China |
| Number of leaf spring | 9/11+7 | Number of tire | 6 |
| Tire | 8.25-20 16PR, 8.25R20 16PR, 9.00-20 14PR, 9.00R20 14PR | ||
| Front wheel track | 1710, 1740 | Rear wheel track | 1630 |
| Oil consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| ISF3.8s5154 | Beijing Foton Cummins Engine Co., Ltd | 3760 | 115 |
| ISF3.8E6154 | Beijing Foton Cummins Engine Co., Ltd | 3760 | 115 |
