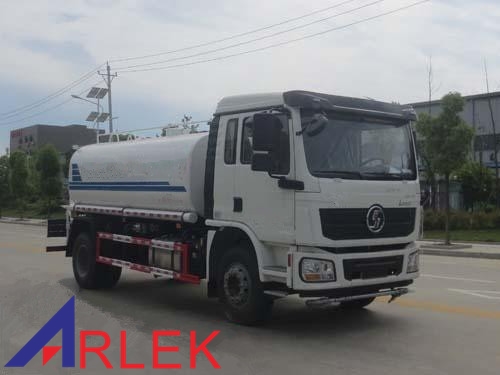

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 8200, 8400×2470×3050 | ||
| Total mass | 18000 |
|
|
| Rated load | 10550, 10485 |
|
|
| Curb mass | 7320 |
|
|
| Approach/departure angle |
| Front/rear overhang |
|
| Number of axle | 2 | Wheel base | 3800, 4200, 4500, 4700, 5000 |
| Axle load | 6500/11500 | Max. driving speed | 100 |
| Remarks | Tank effective volume: 11 cubic meter； Tank overall dimensions（L×W×H）mm）： 8200/4500/5000×2200×1480; 8400/4700/5200×2200×1430 The side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopt bolted connection, while the rear protection adopts welded connection, the section size is 120×50mm，and the lower edge is 500mm above the ground. | ||
| 底盘参数 | |||
| Chassis brand | Shannxi Automobile Group Co., Ltd | Chassis model | SX1180LA1 |
| |
| ||
| |
| ABS | ABS model: ZQFB-V Xi'an King-truck Electron Co., Ltd |
| Number of leaf spring | 10/9+6, 3/4+3 | Number of tire | 6 |
| Tire | 10.00R20, 295/80R22.5 | ||
| Front wheel track | 1927, 1935 | Rear wheel track | 1860, 1800 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| WP6.180E50 | Weichai Light Diesel Engine Co., Ltd (Weifang) | 6750 | 132 |
| WP6.200E50 | Weichai Light Diesel Engine Co., Ltd (Weifang) | 6750 | 147 |
| YC4EG185-50 | Guangxi Yuchai Machinery Co., Ltd | 4730 | 136 |
| WP6.245E50 | Weichai Light Diesel Engine Co., Ltd (Weifang) | 6750 | 180 |
| WP6.220E50 | Weichai Light Diesel Engine Co., Ltd (Weifang) | 6750 | 162 |
