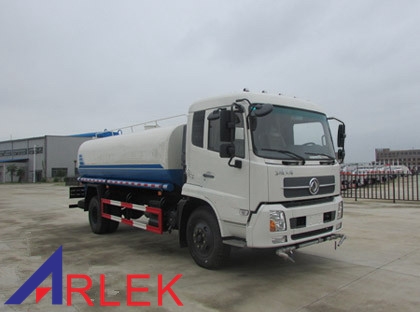

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 8500×2480×3050 | ||
| Total mass | 18000 |
|
|
| Rated load | 10670 |
|
|
| Curb mass | 7135 |
|
|
| Approach/departure angle | 20/12 | Front/rear overhang | 1430/2370 |
| Number of axle | 2 | Wheel base | 3650, 3800, 4200, 4500, 4700, 5000 |
| Axle load | 6500/11500 | Max. driving speed | 98 |
| Remarks | Tank effective volume: 11.2 cubic meter； Tank overall dimensions（L×W×H）（mm）：5300×2200×1430; The side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopts bolted connection, while the rear protection adopts welded protection, the section size is 120×50mm，the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | Dongfeng Commercial Vehicle Co., Ltd | 底盘型号 | DFH1180BX1V |
| |
| ||
| |
| ABS | ABS model: 4460046440 3631010-C2000 WEBCO China Knorr-Bremse DETC Commercial Vehicle Braking Technology Co., Ltd (Shiyan) |
| Number of leaf spring | 7/9+6, 8/10+8 | Number of tire | 6 |
| Tire | 10.00R20 | ||
| Front wheel track | 1880, 1900 | Rear wheel track | 1800, 1860, 1820 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| ISD270 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 198 |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 155 |
| ISD180 50 | Dongfeng Cummins Engine Co., Ltd | 4500 | 132 |
| EQH180-53 | Dongfeng Commercial Vehicle Co., Ltd | 4752 | 132 |
| ISB180 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 132 |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 155 |
