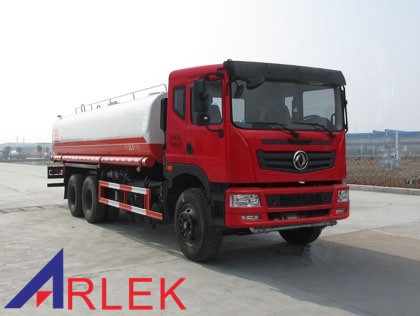

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 10000×2480×3370 | ||
| Total mass | 25000 |
|
|
| Rated load | 14830, 14765 |
|
|
| Curb mass | 10040 |
|
|
| Approach/departure angle | 24/8 | Front/rear overhang | 1250/3100, 1450/2900 |
| Number of axle | 3 | Wheel base | 4350+1300, 4750+1300, 5350+1350, 5850+1350 |
| Axle load | 7000/18000 （Dual-axle group） | Max. driving speed | 90 |
| Remarks | Tank effective volume: 15.5 cubic meter； Tank overall dimensions（L×W×H）（mm）：6800×2250×1500; The side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopts bolted connection, while the rear protection adopts welded connection, the section size is 120×50mm，and the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | DFAC | Chassis model | EQ1250GLJ |
| |
| ||
| |
| ABS | ABS model: 3631010-C2000 Knorr-Bremse DETC Commercial Vehicle Braking Technology Co., Ltd (Shiyan) |
| Number of leaf spring | 9/10, 9/13 | Number of tire | 10 |
| Tire | 11.00-20, 11.00R20 16PR, 10.00-20, 10.00R20 | ||
| Front wheel track | 1960, 2045, 1940 | Rear wheel track | 1860/1860, 1900/1900 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| YC6A240-50 | Guangxi Yuchai Machinery Co., Ltd | 7520 | 177 |
| ISD245 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 180 |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 155 |
| YC6A270-50 | Guangxi Yuchai Machinery Co., Ltd | 7520 | 199 |
