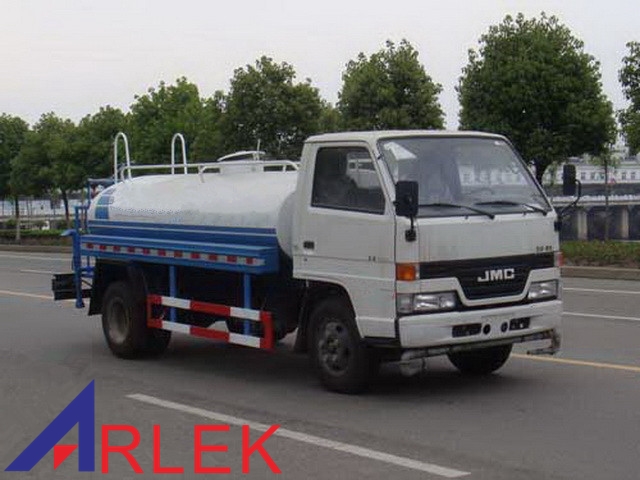

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 5990×1980×2250 | ||
| Total mass | 5790 |
|
|
| Rated load | 3000 |
|
|
| Curb mass | 2660 |
|
|
| Approach/departure angle | 20/15 | Front/rear overhang | 1015/1615 |
| Number of axle | 2 | Wheel base | 3360 |
| Axle load | 2200/3590 | Max. driving speec | 90 |
| Remarks | Tank effective volume: 3.15 cubic meter Tank overall dimensions（length×long axis×short axis）（mm）：3500×1490×900; The side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopts bolted connection, the rear protection adopts welded connection, the section size is 120×50mm, the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | Jiangling Motors Corporation Ltd | Chassis model | JX1060TG24 |
| Overall dimensions | 5825×1880×2020 | ||
| Approach/departure angle | 27/18.5 | |
|
| Number of leaf spring | 7/5+5 | Number of tire | 6 |
| Tire | 7.00R16LT | ||
| Front wheel track | 1385 | Rear wheel track | 1425 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro Ⅳ |
| Engine model | Engine manufacturer | Displacement | Power |
| JX493ZLQ4 | Jiangling Motors Corporation, Ltd | 2771 | 80 |
