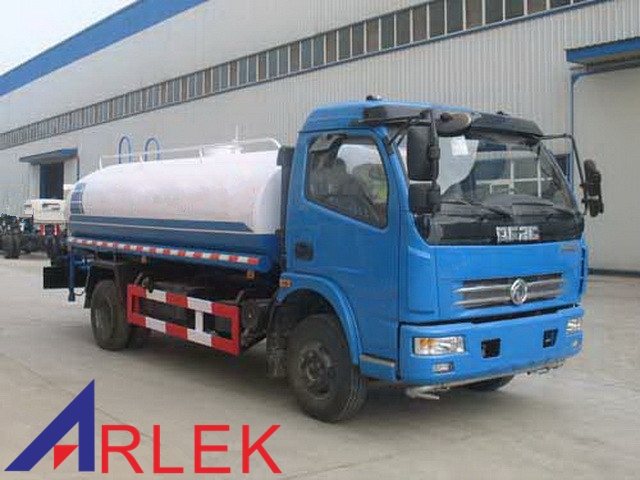

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 6990×2300×2500 | ||
| Total mass | 8495 |
|
|
| Rated load | 4500 |
|
|
| Curb mass | 3800 |
|
|
| Approach/departure angle | 24/12 | Front/rear overhang | 1210/1980 |
| Number of axle | 2 | Wheel base | 3800 |
| Axle load | 3390/5105 | Max. driving speed | 90 |
| Remarks | Tank effective volume: 4.7 cubic meter Tank overall dimensions（mm）：4200×1650×1010; Side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopts bolted connection, rear protection adopts welded connection, the section size is 300×50mm, and the lower edge is 550mm above the ground. | ||
| Chasiss | |||
| Chassis brand | DFAC | Chassis model | DFA1080SJ11D3 |
| Overall dimensions | 6815×2080×2440 | ||
| Approach/departure angle | 24/14 | |
|
| Number of leaf spring | 8/10+7, 11/9+7 | Number of tire | 6 |
| Tire | 7.50-16 12PR, 8.25-16 14PR, 7.50R16 12PR, 8.25R16 14PR | ||
| Front wheel track | 1770, 1831 | Rear wheel track | 1586, 1640 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro Ⅳ |
| Engine model | Engine manufacturer | Displacement | Power |
| CY4102-CE4B | Dongfeng Chaoyang Diesel Co., Ltd | 3856 | 100 |
