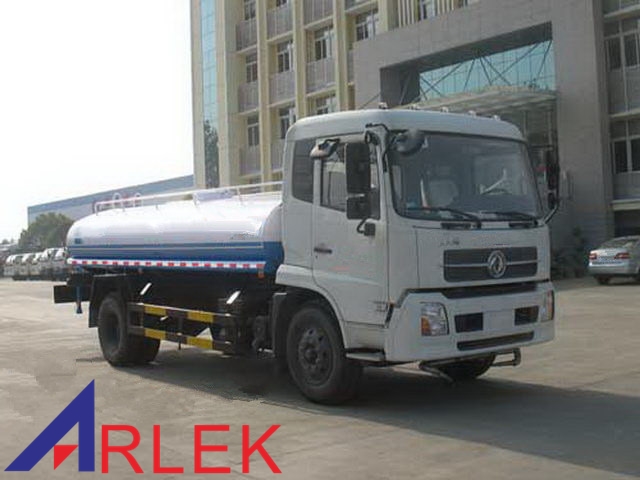

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameter | |||
| Overall dimensions | 8800, 8400×2380×2950 | ||
| Total mass | 16000 |
|
|
| Rated load | 9300 |
|
|
| Curb mass | 6505 |
|
|
| Approach/departure angle | 20/12 | Front/rear overhang | 1430/2370, 1430/2270 |
| Number of axle | 2 | Wheel base | 5000, 4700, 4500 |
| Axle load | 6000/10000 | Max. driving speed | 90 |
| Remarks | Tank effective volume: 9.76 cubic meter Tank overall dimensions(mm): 5300×2100×1310; 5700×2050×1250; Overall length/wheel base/overhange/tank length(mm): 8800/5000/2370/5700; 8400/4700/2270/5300 The side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopts bolted connection, the rear protection adopts welded connection, the section size is 300×50mm, and the lower edge is 550mm above ground. | ||
| Chassis | |||
| Chassis brand | DFAC | Chassis model | DFL1160BX5 |
| Overall dimensions | 8970, 8290, 7790, 7190×2370, 2460×2760, 2840 | ||
| Approach/departure angle | 20/13 | |
|
| Number of leaf spring | 8/10+8, 7/9+6 | Number of tire | 6 |
| Tire | 10.00-20, 10.00R20, 9.00-20, 9.00R20, 275/80R22.5 16PR | ||
| Front wheel track | 1880 | Rear wheel track | 1860, 1800 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro Ⅳ |
| Engine model | Engine manufacturer | Displacement | Power |
| ISDe210 40 | Dongfeng Cummins Engine Co., Ltd | 6700 | 155 |
| ISDe180 40 | Dongfeng Cummins Engine Co., Ltd | 4500 | 132 |
| ISDe 185 40 | Dongfeng Cummins Engine Co., Ltd | 6700 | 136 |
| EQH180-40 | DFAC | 4752 | 132 |
| ISB180 40 | Dongfeng Cummins Engine Co., Ltd | 5900 | 132 |
