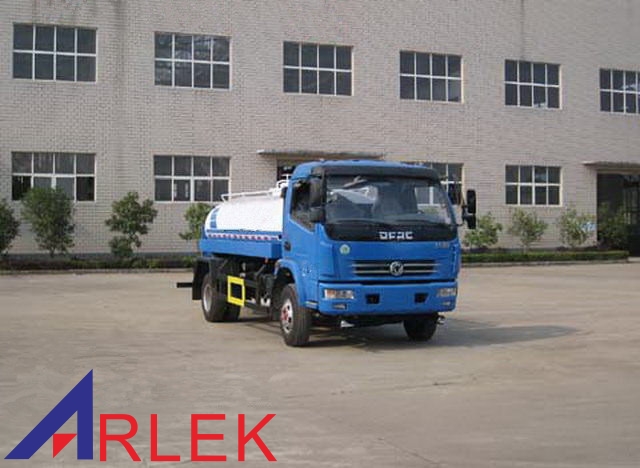

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 6100×2250×2600 | ||
| Total mass | 8495 |
|
|
| Rated load | 3990 |
|
|
| Curb mass | 4310 |
|
|
| Approach/departure angle | 18/12 | Front/rear overhang | 1180/1820 |
| Number of axle | 2 | Wheel base | 3100 |
| Axle load | 2700/5795 | Max. driving speed | 95 |
| Remarks | Tank effective volume: 4.18 cubic meter Tank overall dimensions (length×long axis×short axis)(mm): 3250×1700×1130; The side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopts welded and bolted connection, the rear protection adopt bolted connection, the section size is 60（width）×100（height）mm, and the lower edge is 480mm above the ground. | ||
| Chassis parameter | |||
| Chassis brand | DFAC | Chassis model | EQ1080SJ2BDA |
| Overall dimensions | 5630×2200×2550 | ||
| Approach/departure angle | 25/14 | |
|
| Number of leaf spring | 8/9+5 | Number of tire | 6 |
| Tire | 8.25-16, 8.25R16 | ||
| Front wheel track | 1770 | Rear wheel track | 1640 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro Ⅳ |
| Engine model | Engine manufacturer | Displacement | Power |
| ISDe140 40 | Dongfeng Cummins Engine Co., Ltd | 4500 | 103 |
| CY4102-CE4C | Dongfeng Chaoyang Diesel Co., Ltd | 3856 | 91 |
