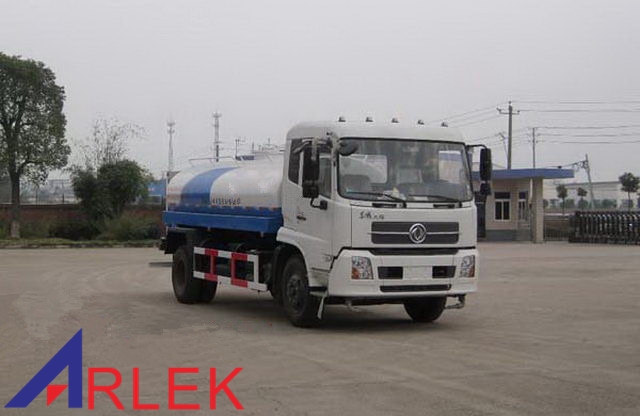

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 8400, 8100×2490×3100 | ||
| Total mass | 15950 |
|
|
| Rated load | 9200 |
|
|
| Curb mass | 6555 |
|
|
| Approach/departure angle | 16/14, 16/16 | Front/rear overhang | 1430/2470 |
| Number of axle | 2 | Wheel base | 4500，4200 |
| Axle load | 5975/9975 | Max. driving speed | 90 |
| Remarks | Tank effective volume: 9.6 cubic meter 1) When the overall length is 8400mm, wheel base is 4500mm, and departure angle is 14°, the tank overall dimensions (length×long axis×short axis)(mm): 5100×2060×1360; 2) When the overall length is 8100mm, wheel base is 4200mm, and departure angle is 16°, the tank overall dimensions (length×long axis×short axis)(mm): 4800×2100×1420; The side protection and rear protection adopts Q235 cold forming profile steel, the side protection adopt welded and bolted connection, while the rear protection adopts bolted connection，the section size is 60（width）×100（height）mm, the lower edge is 530mm above the ground. | ||
| Chassis | |||
| Chassis brand | DFAC | Chassis model | DFL1160BX4 |
| Overall dimensions | 7790, 7190，7490×2370， 2460×2760, 2760，2840 | ||
| Approach/departure angle | 20/18, 20/20 | |
|
| Number of leaf spring | 8/10+8, 7/9+6 | Number of tire | 6 |
| Tire | 10.00-20, 10.00R20, 9.00-20, 9.00R20 | ||
| Front wheel track | 1880 | Rear wheel track | 1860, 1800 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro Ⅳ |
| Engine model | Engine manufacturer | Displacement | Power |
| ISDe210 40 | Dongfeng Cummins Engine Co., Ltd | 6700 | 155 |
| ISDe180 40 | Dongfeng Cummins Engine Co., Ltd | 4500 | 132 |
| ISDe185 40 | Dongfeng Cummins Engine Co., Ltd | 6700 | 136 |
| EQH180-40 | DFAC | 4752 | 132 |
| ISB180 40 | Dongfeng Cummins Engine Co., Ltd | 5900 | 132 |
