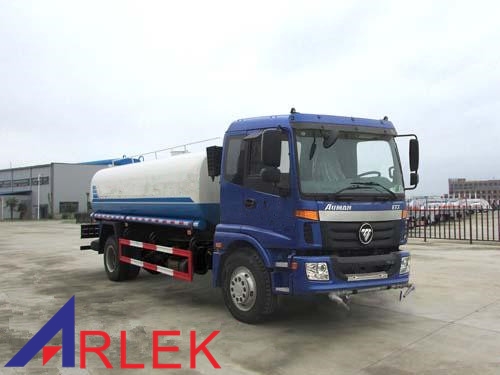

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 8300, 8500×2480×3050 | ||
| Total mass | 16000 |
|
|
| Rated load | 8680, 8615 |
|
|
| Curb mass | 7190 |
|
|
| Approach/departure angle | 18/12 | Front/rear overhang | 1365/2435 |
| Number of axle | 2 | Wheel base | 4500, 4700 |
| Axle load | 6000/10000 | Max. driving speed | 85 |
| Remarks | Tank effective volume: 11.3cubic meter； Length/tank overall dimensions（L×W×H）（mm）corresponding to the wheel base： 8300/5100×2250×1460/4500， 8500/5300×2200×1450/4700； The side protection and rear protection adopt Q235 profile steel, the side protection adopts bolted connection, while the rear protection adopts welded connection. The section size is 120×50mm，the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | Beijing Foton Daimler Automotive | Chassis model | BJ5163XXY-XP |
| |
| ||
| |
| ABS system | ABS model: 44600XXXX0 WEBCO China |
| Number of leaf spring | 10/10+8 | Number of tire | 6 |
| Tire | 10.00-20 18PR, 10.00-20 16PR, 10.00R20 18PR, 10.00R20 16PR | ||
| Front wheel track | 1883 | Rear wheel track | 1847 |
| Fuel consumption （L/100km） |
| |
|
| Fuel | Diesel | 排放标准 | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 155 |
| ISD190 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 144 |
| ISB190 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 140 |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 155 |
