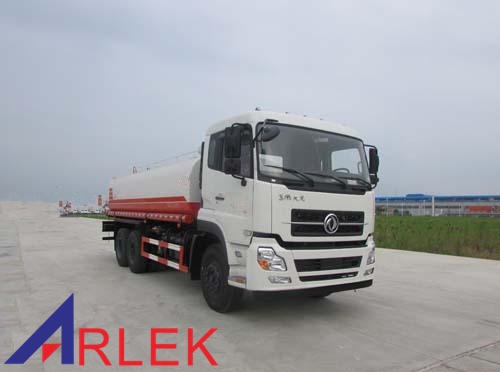

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 9950×2500×3150, 3690 | ||
| Total mass | 25000 |
|
|
| Rated load | 13730, 13665 |
|
|
| Curb mass | 11140 |
|
|
| Approach/departure angle | 18/10 | Front/rear overhang | 1480/2770, 1500/2750 |
| Number of axle | 3 | Wheel base | 4350+1350, 5350+1350, 5700+1350, 3800+1350 |
| Axle load | 7000/18000 | Max. driving speed | 90 |
| Remarks | Tank effective volume: 15.1 cubic meter; Tank dimensions（L×W×H）（mm）：6600×2290×1500; the side protection and rear protection adopt Q235 profile steel, the side protection adopts bolted connection, while the rear protection adopts welded connection. The section size is 120×50mm, the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | Beijing Foton Daimler Automotive | Chassis model | BJ5163XXY-XP |
| |
| ||
| |
| ABS system | ABS model: 3631010-C2000 Knorr-Bremse DETC commercial vehicle braking technology Co., Ltd (Shiyan) |
| Number of leaf spring | 8/9，8/10，9/10 | Number of tire | 10 |
| Tire | 11.00-20 18PR, 11.00R20 16PR, 295/80r22.5 16PR | ||
| Front wheel track | 2040 | Rear wheel track | 1860/1860 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| ISD245 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 180 |
| ISD270 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 198 |
