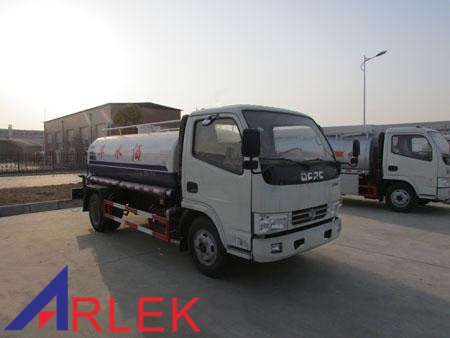

Water tank truck is composed of truck chassis, water inlet/outlet system and tank body.
There are various water spraying and water transportation functions under different operation environment and for different purpose.
| Water tank truck | |||
| Technical parameters | |||
| Overall dimensions | 5990×1980×2350 | ||
| Total mass | 7360 |
|
|
| Rated load | 4000 |
|
|
| Curb mass | 3230 |
|
|
| Approach/departure angle | 20/15 | Front/rear overhang | 1040/1642 |
| Number of axle | 2 | Wheel base | 3308, 2800 |
| Axle load | 2640/4720 | Max. driving speed | 99 |
| Remarks | Tank effective volume: 4.2 cubic meter; Tank dimensions:（length×long axis×short axis）（mm）：3400×1680×1100; The side protection and rear protection adopt Q235 cold forming profile steel, the side protection adopts bolted connection, the rear protection adopts welded connection. The section size is 320×50mm, the lower edge is 500 above the ground. | ||
| Chassis | |||
| Chassis brand | DFAC | Chassis model | EQ1070SJ3BDF |
| |
| ||
| |
| ABS | ABS model: ASR-24V-4S/4M Xiangyang Dongfeng |
| Number of leaf spring | 6/6+5 | Number of tire | 6 |
| Tire | 7.00-16, 7.00R16 | ||
| Front wheel track | 1503, 1485, 1519, 1595 | Rear wheel track | 1494, 1516, 1540 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| CY4BK551 | Dongfeng Chaoyang Diesel Co., Ltd | 3707 | 75 |
| YC4FA115-50 | Guangxi Yuchai Machinery Co., Ltd | 2982 | 85 |
| 4B2-115c50 | Anhui Quanchai Power Co., Ltd | 2545 | 85 |
| ZD30D13-5N | Dongfeng Light Engine Co., Ltd | 2953 | 96 |
