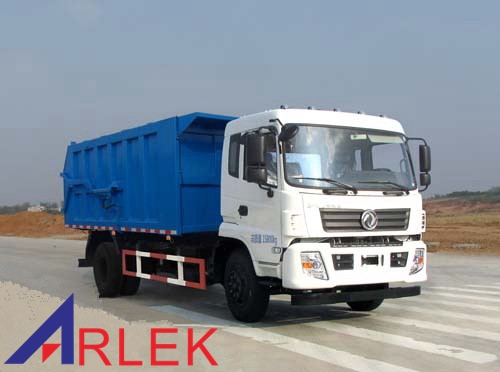

The compressed butt garbage truck is a special vehicle used for the unloading and discharging of rubbish in the municipal refuse compression station.
| Compressed butt garbage truck | |||
| Technical parameters | |||
| External dimensions | 7500, 7700×2480×3100 | ||
| Total mass | 15800 |
|
|
| Rated load | 6700 |
|
|
| Curb mass | 8905 |
|
|
| Approach/departure angle | 21/18 | Front/rear overhang | 1440/1560 |
| Number of axle | 2 | Wheel base | 3950, 4500, 5100, 4700, 4200, 5600, 5700 |
| Axle load | 5800/10000 | Max. drivng speed | 90 |
| Remarks |
| ||
| Chassis | |||
| Chassis manufacturer | Dongfeng Commercial Vehicle Co., Ltd | Chassis model | EQ1160GD5DJ |
| Approach/departure angle |
| ABS |
|
| Number of leaf spring | 9/12+10, 8/10+7, 8/10+8, 7/9+6, 11/11+10 | Number of tire | 6 |
| Tire | 10.00R20, 10.00-20, 9.00R20, 9.00-20 | ||
| Front wheel track | 1900, 1880, 1810, 1940 | Rear wheel track | 1860,1800, 1800, 1860 |
| Fuel consumption（L/100km） |
| Max. driving speed |
|
| Fuel | Diesel | Emisssion standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| ISD180 50 | Dongfeng Cummins Engine Co., Ltd | 4500 | 132 |
| YC6JA180-50 | Guangxi Yuchai Machinery Co., Ltd | 6870 | 132 |
| ISD190 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 144 |
| ISB170 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 125 |
| ISB190 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 140 |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 155 |
| YC4E160-56 | Guangxi Yuchai Machinery Co., Ltd | 4260 | 118 |
| YC4S150-50 | Guangxi Yuchai Machinery Co., Ltd | 3767 | 110 |
| EQH180-52 | Dongfeng Commercial Vehicle Co., Ltd | 4752 | 132 |
| | |||
|
|
|
|
|
