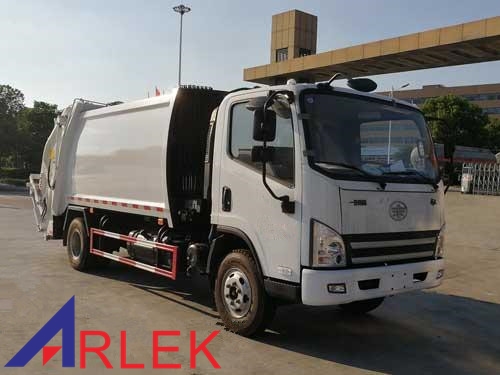

The compression type garbage truck is composed of sealed garbage compartment, hydraulic system and operating system. The truck is fully sealed with the garbage self-compressed and self-dumping. In the process of the garbage compression, all the sewage water enters into the sewage tank, which solve the problem of secondary pollution during garbage transportation, and it has the advantages of high pressure, good sealing performance, easy operation and safety.
| Garbage truck | |||
| Technical parameters | |||
| External dimensions | 6400, 6550, 6600, 6600, 6900×2050×2620 | ||
| Total mass | 7360 |
|
|
| Rated load | 1515, 1315 |
|
|
| Curb mass | 5650, 5850 |
|
|
| Approach/departure angle | 21/13 | Front/rear overhang | 1150/1950 |
| Number of axle | 2 | Wheel base | 3300 |
| Axle load | 2640/4720 | Max. driving speed | 110 |
| Remarks |
| ||
| Chassis | |||
| Chassis manufacturer | FAW | Chassis model | CA1077P40K50L1BE5A84 |
| External dimensions |
| ||
| Approach/departure angle |
| ABS |
|
| Number of leaf spring | 3/4+3, 7/7+3 | Number of tire | 6 |
| Tire | 7.00-16, 7.00R16, 7.50-16, 7.50R16 | ||
| Front wheel track | 1510 | Rear wheel track | 1475 |
| Fuel consumption（L/100km） |
| Max. driving speed |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| 4B2-95C50 | Anhui Quanchai Power Co., Ltd | 2545 | 70 |
| WP2.1Q95E50 | Weichai Power Yangzhou Diesel Engine Co., Ltd | 2088 | 70 |
| 4B2-110C50 | Anhui Quanchai Power Co., Ltd | 2545 | 80 |
| | |||
|
|
|
|
|
