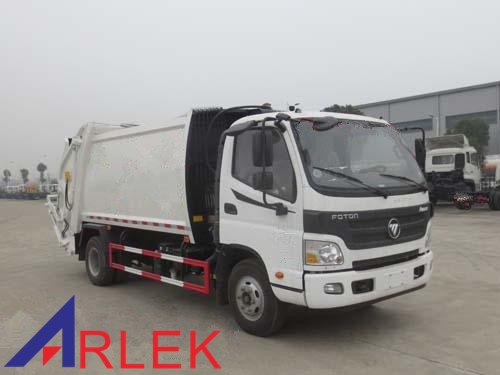

The compression type garbage truck is composed of sealed garbage compartment, hydraulic system and operating system. The truck is fully sealed with the garbage self-compressed and self-dumping. In the process of the garbage compression, all the sewage water enters into the sewage tank, which solve the problem of secondary pollution during garbage transportation, and it has the advantages of high pressure, good sealing performance, easy operation and safety.
| Garbage truck | |||
| Technical parameters | |||
| Overall dimensions | 6900,7200,7380,7100×2270×2650,2870 | ||
| Total mass | 8280 |
|
|
| Rated load | 1980, 1735 |
|
|
| Curb mass | 6105, 6350 |
|
|
| Approach/departure angel | 21/14 | Front/rear overhang | 1120/1980, 1120/2280, 1120/2460, 1120/2180 |
| Number of axle | 2 | Wheel base | 3360, 3800, 4200 |
| Axle load | 3000/5280 | Max. driving speed | 95 |
| |
| ||
| Chassis | |||
| Chassis manufacturer | Beiqi Foton Motor Co., Ltd | Chassis model | BJ5089XXY-FA |
| Overall dimensions |
| ||
| |
| ABS |
|
| Number of leaf spring | 3+1/6+7, 9/11+7, 3/6+7 | Number of tire | 6 |
| Tire | 7.50-16LT 14PR, 7.50R16LT 14PR, 8.25-16LT 16PR, 8.25R16LT 14PR, 235/75R17.5 14PR | ||
| Front wheel track | 1730, 1685, 1665, 1710 | Rear wheel track | 1590, 1615, 1630 |
| Oil consumption（L/100km） |
| Max. driving speed |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacture | Displacement | Power |
| ISF3.8s5141 | Beijing Foton Cummins Engine Co., Ltd | 3760 | 105 |
| ISF3.8s5154 | Beijing Foton Cummins Engine Co., Ltd | 3760 | 115 |
| ISF3.8E6154 | Beijing Foton Cummins Engine Co., Ltd | 3760 | 115 |
| | |||
|
|
|
|
|
