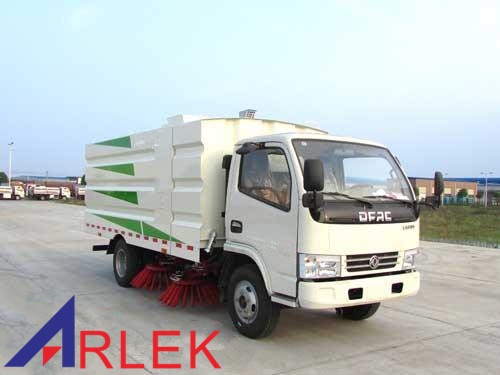

Road sweeper

Technical parameters

External dimensions

5990×2000×2520

Total mass

4495

Rated load

360

Curb mass

4005

Appoach/departure angle

20/14

Front/rear overhang

1040/1642

Number of axle

2

Wheel base

3308, 2800

Axle load

1800/2695

Max. driving speed

99

Remarks

The side protection shall be replaced with the special operation equipment mounted on both sides. The rear protection adopts cold-formed profile steel Q235, the section area is 120×50mm, the lower edge is 400mm above the ground.

Chassis

Chassis brand

DFAC

Chassis model

EQ1041SJ3BDF

ABS

ABS model :ABS/ASR-24V-4S/4M

Xiangyang Dongfeng Chenglong Machinery Co., Ltd

Number of leaf spring

6/6+5

Number of tire

6

Tire

7.00-16 8PR, 7.00R16 8PR

Front wheel track

1503, 1485, 1519

Rear wheel track

1494, 1516

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

CY4BK551

Dongfeng Chaoyang Diesel Co., Ltd

3707

75

YC4FA115-50

Guangxi Yuchai Machinery Co., Ltd

2982

85

4B2-115C50

Anhui Quanchai Power Co., Ltd

2545

85

ZD30D13-5N

Dongfeng Light Engine Co., Ltd

2953

96
