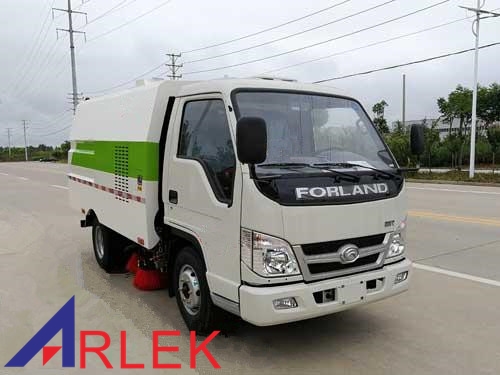

Road sweeper

Technical parameters

External dimensions

5100×1700, 1760×2280

Total mass

4294

Rated load

584

Curb mass

3580

Approach/departure angle

18/16

Front/rear overhang

1115/1385

Number of axle

2

Wheel base

2600, 2850

Axle load

1650/2644

Max. driving speed

90

Remarks

The side protection shall be replaced with the special operation equipment mounted on both sides, the rear protection adopts cold-formed profile steel, the sectional area is 100×50mm, the lower edge is 400mm above the ground.

Chassis

Chassis brand

DFAC

Chassis model

EQ1041SJ3BDF

ABS

ABS adopts double-parameter control, 4S/4M

Guangzhou Kormee Automotive Electronics control technologies Co., Ltd

Number of leaf spring

7/5+3

Number of tire

6

Tire

6.00-15LT 10PR, 6.00R15LT 10PR

Front wheel track

1345

Rear wheel track

1240, 1280

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

4A2-68C50

Anhui Quanchai Power Co., Ltd

2545

85

D19TCIE1

Kunming Yunnei Power Co., Ltd

1912

75

4A2-88C50

Anhui Quanchai Power Co., Ltd

2270

65
