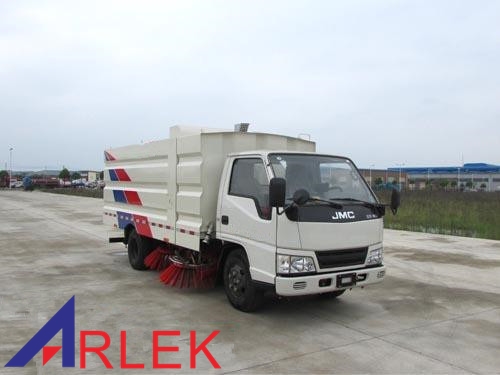

Road sweeper

Technical parameters

External dimensions

5850, 6150×2000×2450

Total mass

5880

Rated load

1400, 850

Curb mass

4350, 4900

Approach/departure angle

27/13

Front/rear overhang

1065/1425, 1065/1725

Number of axle

2

Wheel base

3360

Axle load

2150/3730

Max. driving speed

100

Remarks

The side protection shall be replaced with the special operation equipment mounted on both sides, the rear protection adopts cold-formed profile steel, the sectional area is 120×50mm, and the lower edge is 400mm above the ground.

Chassis

Chassis manufacturer

Jiangling Motors Corporation Ltd.

Chassis model

JX1061TG25

ABS

ABS model:APG3550500A

Zhejiang Asia-pacific Mechanical & Electronic Co., Ltd

Number of leaf spring

7/5+6

Number of tire

6

Tire

7.00-16LT 10PR

Front wheel track

1385

Rear wheel track

1425

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

JX493ZLQ5

Jiangling Motors Corporation, Ltd

2771

85

JX493ZLQ5A

Jiangling Motors Corporation, Ltd

2771

85
