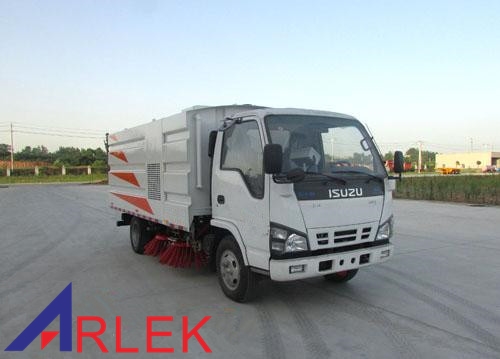

Road sweeper

Technical parameters

External dimensions

5850, 6190×1990×2450, 2590

Total mass

7300

Rated load

2820, 2220

Curb mass

4350, 4950

Approach/departure angle

24/12

Front/rear overhang

1015/1475, 1015/1815

Number of axle

2

Wheel base

3360

Axle load

2580/4720

Max. driving speed

105

Remarks

The side protection shall be repalced by special operation equipment mounted on both sides. The rear protection adopts cold-formed profile steel Q235, the sectional size is 120×50mm, the lower edge is 400mm above the ground.

Chassis

Chassis brand

Qingling Motors (Group) Co., Ltd

Chassis model

QL1070A5HAY

ABS

ABS model:APG3550500A4

Zhejiang Asia-pacific Mechanical & Electronic Co., Ltd

Number of leaf spring

8/6+5

Number of tire

6

Tire

7.00-16 14PR, 7.00R16 14PR

Front wheel track

1504

Rear wheel track

1425

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

4KH1CN5HS

Qingling ISUZU (Chongqing) Engine Company

2999

96

4KH1-TCG51

Qingling ISUZU (Chongqing) Engine Company

2999

88
