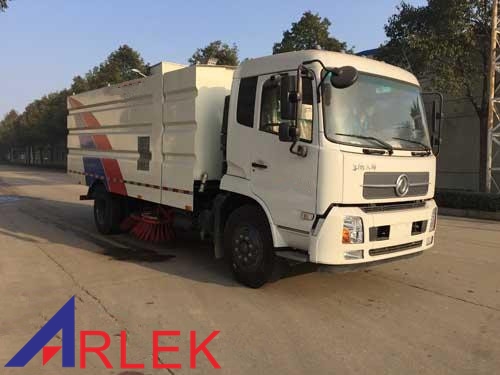

Road sweeper

Technical parameters

External dimensions

7900, 8100×2480×2990, 3150

Total mass

15800

Rated load

6505, 6205

Curb mass

9100, 9400

Approach/departure angle

20/11

Front/rear overhang

1430/1970

Number of axle

2

Wheel base

3800, 4200, 4500, 4700, 5000

Axle load

5600/10200

Max. driving speed

98

Remarks

1)     A square box body or curved box body can be selected,  suction disc in the middile or in the rear can be selcted, dust collecting device only or dust collecting device with single-row brush can be selected.

2） The side protection shall be replaced with special operation equipment mounted on both sides. The rear protection adopts cold-formed profile steel Q235, the sectional area is 120×50mm, the lower edge is 450mm above the ground.

Chassis

Chassis manufacturer

Dongfeng Commercial Vehicle Co., Ltd

Chassis model

DFL1160BX1V

ABS

ABS model:

3631010-C2000, 4460046440

Knorr-Bremse DETC (Shiyang)

WEBCO, China

Number of leaf spring

7/9+6, 8/10+8

Number of tire

6

Tire

9.00R20 16PR, 10.00-20 16PR, 10.00-20 18PR, 10.00R20 14PR, 10.00R20 16PR, 10.00R20 18PR, 10R22.5 16PR, 275/80R22.5, 275/70R22.5 16PR, 275/70R22.5 18PR

Front wheel track

1880, 1900, 1920

Rear wheel track

1800, 1860, 1820

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

ISD210 50

Dongfeng Cummins Engine Co., Ltd

6700

155

ISD190 50

Dongfeng Cummins Engine Co., Ltd

6700

144

ISD180 50

Dongfeng Cummins Engine Co., Ltd

4500

132

EQH180-52

Dongfeng Commercial Vehicle Co., Ltd

4752

132

EQH180-53

Dongfeng Commercial Vehicle Co., Ltd

4752

132

ISB180 50

Dongfeng Cummins Engine Co., Ltd

5900

132

ISD270 50

Dongfeng Cummins Engine Co., Ltd

6700

198

ISB210 50

Dongfeng Cummins Engine Co., Ltd

5900

155

ISB190 50

Dongfeng Cummins Engine Co., Ltd

5900

140
