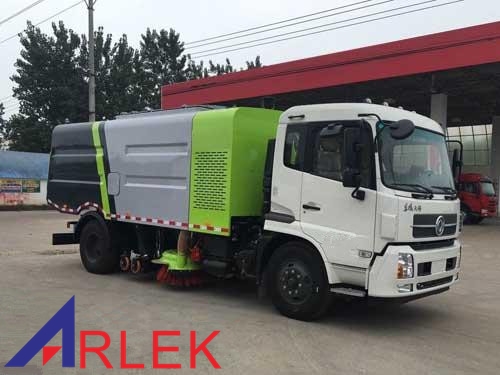

Road sweeper

Technical parameters

External dimensions

7860, 8060, 8360×2480×3050

Total mass

15800

Rated load

4805

Curb mass

10800

Approach/departure angle

20/11

Front/rear overhang

1430/1930

Number of axle

2

Wheel base

3800, 4200, 4500, 4700, 5000

Axle load

5800/10000

Max. driving speed

98

Remarks

1)   The external length/wheel base(mm)：7860/4500, 8060/4700, 8360/5000

2） The side protection shall be replaced with special operation equipment mounted on both sides. The rear protection adopts cold-formed profile steel Q235, the sectional area is 120×50mm, the lower edge is 450mm above the ground.

Chassis

Chassis manufacturer

Dongfeng Commercial Vehicle Co., Ltd

Chassis model

DFL1160BX1V

ABS

ABS model:

3631010-C2000, 4460046440

Knorr-Bremse DETC (Shiyan)

WEBCO, China

Number of leaf spring

7/9+6, 8/10+8

Number of tire

6

Tire

9.00-20 9.00R20, 10.00-20 10.00-R20, 275/80R22.5, 275/70R22.5, 295/80R22.5

Front wheel track

1880, 1900, 1920

Rear wheel track

1800, 1860, 1820

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

ISD210 50

Dongfeng Cummins Engine Co., Ltd

6700

155

ISD190 50

Dongfeng Cummins Engine Co., Ltd

6700

144

ISD180 50

Dongfeng Cummins Engine Co., Ltd

4500

132

EQH180-52

Dongfeng Commerical Vehicle Co., Ltd

4752

132

EQH180-53

Dongfeng Commercial Vehicle Co., Ltd

4752

132

ISB180 50

Dongfeng Cummins Engine Co., Ltd

5900

132

ISD270 50

Dongfeng Cummins Engine Co., Ltd

6700

198

ISB210 50

Dongfeng Cummins Engine Co., Ltd

5900

155

ISB190 50

Dongfeng Cummins Engine Co., Ltd

5900

140
