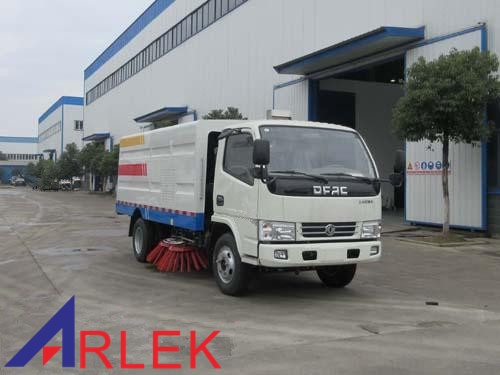

Road sweeper

Technical parameters

External dimensions

5950×2000×2380, 2590

Total mass

7360

Rated load

2190

Curb mass

5040

Approach/departure angle

20/15

Front/rear overhang

1040/1602

Number of axle

2

Wheel base

3308, 2800

Axle load

2640/4720

Max. driving speed

99

Remarks

1)    The radiator grille and the front fog lamp can be selected,  the fuel tank installation position (left or right) can be selected, and the box body can be selected.

2） The side protection shall be replaced with special operation equipment mounted on both sides. The rear protection shall be replaced with the rear special operation equipment.

Chassis

Chassis brand

DFAC

Chassis model

EQ1070SJ3BDF

ABS

ABS model:

ABS/ASR-24V-4S/4M

Xiangyang Dongfeng Longcheng Machinery Co., Ltd

Number of leaf spring

6/6+5

Number of tire

6

Tire

7.00-16, 7.00R16

Front wheel track

1503, 1485, 1519, 1595

Rear wheel track

1494, 1516, 1540

Fuel consumption（L/100km）

Fuel

Diesel

Emission stan

Euro V

Engine model

Engine manufacturer

Displacement

Power

CY4BK551

Dongfeng Chaoyang Diesel Co., Ltd

3707

75

YC4FA115-50

Guangxi Yuchai Machinery Co., Ltd

2982

85

4B2-115C50

Anhui Quanchai Power Co., Ltd

2545

85

ZD30D13-5N

Dongfeng Light Engine Co., Ltd

2953

96
