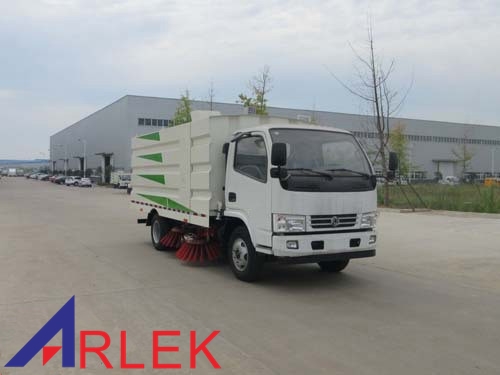

Road sweeper

Technical parameters

External dimensions

6210, 6320, 6390, 6420×2000, 2150×2550, 2590, 2650

Total mass

7350

Rated load

2020, 1955

Curb mass

5200

Approach/departure angle

24/16

Front/rear overhang

1070/1840, 1180/1840, 1250/1840, 1280/1840

Number of axle

2

Wheel base

3300, 3800

Axle load

2640/4710

Max. driving speed

90

Remarks

1)     The entire vehicle length/front overhang (mm):6210/1070, 6320/1180, 6390/1250, 6420/1280

2）  The side protection shall be replaced with the special operation equipment mounted on both sides. The rear protection adopt cold-formed profile steel Q235 with welded and bolted connection, the sectional area is 50 (width)×100(height)mm，and the lower edge is 490mm above the ground.

Chassis parameters

Chassis brand

DFAC

Chassis model

EQ1072GLJ

Approach/departure angle

ABS

ABS model:

3631010-C2000

Knorr-Bremse DETC (Shiyang)

Number of leaf spring

8/9+5, 8/10+7, 9/10+8, 6/6+5

Number of tire

6

Tire

7.00-16LT 14PR, 7.00R16LT 14PR, 7.50-16LT 14PR, 7.50R16LT 14PR

Front wheel track

1506, 1590, 1750

Rear wheel track

1530, 1586, 1650

Fuel consumption（L/100km）

Max. driving speed

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

CY4BK251

Dongfeng Chaoyang Diesel Co., Ltd

3856

96

CY4BK451

Dongfeng Chaoyang Diesel Co., Ltd

3707

86

YC4FA115-50

Guangxi Yuchai Machinery Co., Ltd

2982

85

4DW94-95E5

FAW Liberated Automobile Co., Ltd. Wuxi Diesel Engine Plant

2720

72
