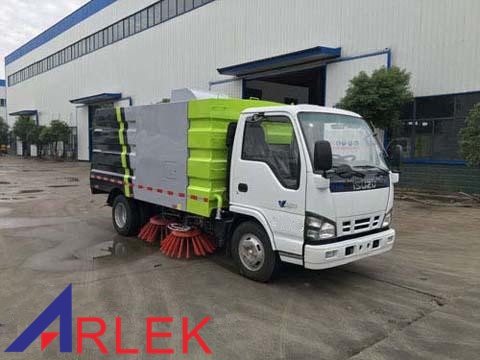

Road sweeper

Technical parameters

External dimensions

5960, 6200×1990×2380, 2590

Total mass

7300

Rated load

2210

Curb mass

4960

Approach/departure angle

24/16

Front/rear overhang

1015/1585, 1015/1825

Number of axle

2

Wheel base

3360

Axle load

2580/4720

Max. driving speed

110

Remarks

1)     The box body can be selected, if it is selected , the entire vehicle length is 5960mm and the height is 2380mm.

2） Special operation equipment shall be mounted on both sides, the rear protection is replaced with special operation equipment, and the lower edge is 250mm above the ground.

Chassis

Chassis manufacturer

Qingling Motors (Group) Co., Ltd.

Chassis model

QL1070A5HAY

Approach/departure angle

ABS

ABS model:

APG3550500A4

Zhejiang Asia-pacific Mechanical & Electronic Co., Ltd.

Number of leaf spring

8/6+5

Number of tire

6

Tire

7.00-16N14PR, 7.00R16 14PR

Front wheel track

1504

Rear wheel track

1425

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

4KH1CN5HS

Qingling ISUZU (Chongqing) Engine Company

2999

96

4KH1-TCG51

Qingling ISUZU (Chongqing) Engine Company

2999

88
