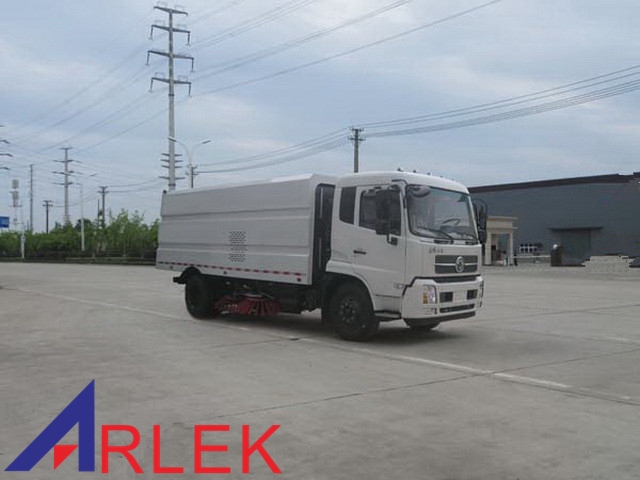

| Road sweeper | |||
| Technical parameters | |||
| External dimensions | 7620, 7920, 8120×2500×3070, 3130 | ||
| Total mass | 15800 |
|
|
| Rated load | 5705 |
|
|
| Curb mass | 9900 |
|
|
| Approach/departure angle | 20/17 | Front/rear overhang | 1430/1990 |
| Number of axle | 2 | Wheel base | 3800, 4200, 4500, 4700, 5000 |
| Axle load | 5600/10200 | Max. driving speed | 98 |
| Remarks | 1) The front fog lamp, the box body and sweeper disc type can be selected. 2） Special equipment shall be mounted on both sides, the rear protection adopts rear special equipment, the lower edge is 415mm above the ground. | ||
| Chassis | |||
| Chassis manufacturer | Dongfeng Commercial Vehicle Co., Ltd | Chassis model | DFL1160BX1V |
| Approach/departure angle |
| ABS | ABS model: 3631010-C2000, 4460046440 Knorr-Bremse DETC (Shiyan) WEBCO, China |
| Number of leaf spring | 7/9+6, 8/10+8, 10/11+10 | Number of tire | 6 |
| Tire | 9.00R20 16PR, 10.00-20 16PR, 10.00-20 18PR, 10.00R20 14PR, 10.00R20 16PR, 10.00R20 18PR, 10R22.5 16PR, 275/80R22.5, 275/70R22.5 16PR, 275/70R22.5 18PR | ||
| Front wheel track | 1880, 1900, 1920 | Rear wheel track | 1800, 1860, 1820 |
| Fuel consumption（L/100km） |
| Max. driving speed |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 155 |
| ISD190 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 144 |
| ISD180 50 | Dongfeng Cummins Engine Co., Ltd | 4500 | 132 |
| EQH180-52 | Dongfeng Commercial Vehicle Co., Ltd | 4752 | 132 |
| EQH180-53 | Dongfeng Commerial Vehicle Co., Ltd | 4752 | 132 |
| ISB180 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 132 |
| ISD270 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 198 |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 155 |
| ISB190 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 140 |
