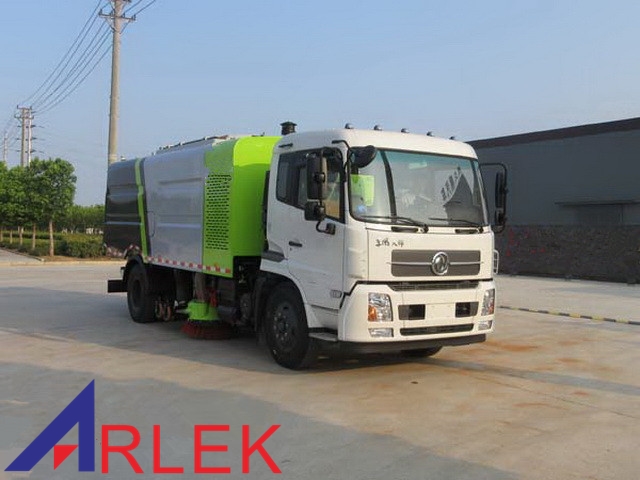

Road sweeper

Technical parameters

External dimensions

7860, 8060×2500×3070

Total mass

15800

Rated load

4925

Curb mass

10680

Approach/departure angle

20/20

Front/rear overhang

1430/1930

Number of axle

2

Wheel base

3800, 4200, 4500, 4700, 5000

Axle load

5600/10200

Max. driving speed

98

Remarks

1)  The front fog lamp can be selected, the entire vehicle length/wheel base(mm)：7860/4500, 8060/4700.

2）Special equipment shall be mounted on both sides, the rear protection adopts Q235 with welded and bolted connections, the rear protection sectional area （width×height）mm：60×240, the lower edge is 400mm above the ground.

Chassis

Chassis manufacturer

Dongfeng Commercial Vehicle Co., Ltd

Chassis model

DFL1160BX1V

Approach/departure angle

ABS

ABS model:

3631010-C2000, 4460046440

Knorr-Bremse DETC (Shiyan)

WEBCO, China

Number of leaf spring

7/9+6, 8/10+8

Number of tire

6

Tire

9.00R20 16PR, 10.00-20 16PR, 10.00-20 18PR, 10.00R20 14PR, 10.00R20 16PR, 10.00R20 18PR, 10R22.5 16PR, 275/80R22.5, 275/70R22.5 16PR, 275/70R22.5 18PR

Front wheel track

1880, 1900, 1920

Rear wheel track

1800, 1860, 1820

Fuel consumption（L/100km）

Max. driving speed

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

ISD210 50

Dongfeng Cummins Engine Co., Ltd

6700

155

ISD190 50

Dongfeng Cummins Engine Co., Ltd

6700

144

ISD180 50

Dongfeng Cummins Engine Co., Ltd

4500

132

EQH180-52

Dongfeng Commercial Vehicle Co., Ltd

4752

132

EQH180-53

Dongfeng Commercial Vehicle Co., Ltd

4752

132

ISB180 50

Dongfeng Cummins Engine Co., Ltd

5900

132

ISD270 50

Dongfeng Cummins Engine Co., Ltd

6700

198

ISB210 50

Dongfeng Cummins Engine Co., Ltd

5900

155

ISB190 50

Dongfeng Cummins Engine Co., Ltd

5900

140
