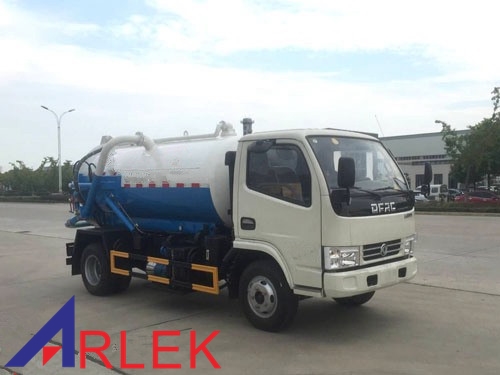

| Sewage suction truck | |||
| Technical parameters | |||
| External dimensions | 5850×2000×2300 | ||
| Total mass | 4495 |
|
|
| Rated load | 1495 |
|
|
| Curb mass | 2870 |
|
|
| Approach/departure angle | 20/16 | Front/rear overhang | 1040/1502 |
| Number of axle | 2 | Wheel base | 3308, 2800 |
| Axle load | 1800/2695 | Max. driving speed | 99 |
| Remarks | Tank effective volume:1.96 cubic meter Tank external dimensions(mm): straight section length is 2600, diameter is 1050. The side protection and rear protection adopt cold-formed profile steel Q235, the side protection adopts bolted connection, the rear protection adopts welded connection, the sectional area is 100×50mm, the lower edge is 450mm above the ground. | ||
| Chassis | |||
| Chassis brand | DFAC | Chassis model | EQ1041SJ3BDF |
| |
| ABS | ABS model:ABS/ASR-24V-4S/4M Xiangyang Dongfeng Longcheng Machinery Co., Ltd |
| Number of leaf spring | 6/6+5 | Number of tire | 6 |
| Tire | 7.00-16 8PR, 7.00R16 8PR | ||
| Front wheel track | 1503, 1485, 1519 | Rear wheel track | 1494, 1516 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| CY4BK551 | Dongfeng Chaoyang Diesel Co., Ltd | 3707 | 75 |
| YC4FA115-50 | Guangxi Yuchai Machinery Co., Ltd | 2982 | 85 |
| 4B2-115C50 | Anhui Quanchai Power Co., Ltd | 2545 | 85 |
| ZD30D13-5N | Dongfeng Light Engine Co., Ltd | 2953 | 96 |
| | |||
|
|
|
|
|
