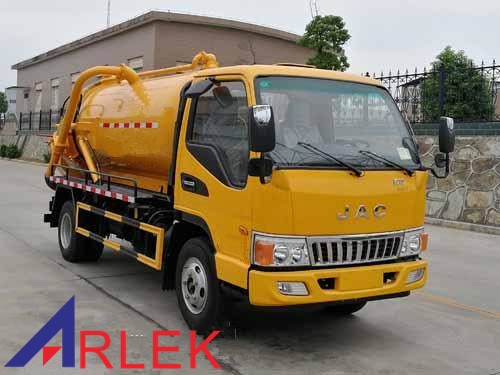

| Sewage suction truck | |||
| Technical parameters | |||
| External dimensions | 5800×1950×2550 | ||
| Total mass | 7360 |
|
|
| Rated load | 3125 |
|
|
| Curb mass | 4105 |
|
|
| Approach/departure angle | 27/15 | Front/rear overhang | 1085/1407 |
| Number of axle | 2 | Wheel base | 3360, 3308, 2800 |
| Axle load | 2640/4720 | Max. driving speed | 90 |
| Remarks | Tank effective volume: 4 cubic meter Tank external dimensions(mm): straight section length is 3000, diameter is 1300. The side protection and rear protection adopt cold-formed profile steel Q235, the side protection adopts bolted connection, the rear protection adopts welded protection, the sectional area is 100×50mm, the lower edge is 450mm above the ground. | ||
| Chassis | |||
| Chassis manufacturer | Anhui Jianghuai Automobile Co., Ltd | Chassis model | HFC1070P93K1C3ZV |
| |
| ABS | ABS model:CM4XL-4S/4M Guangzhou Kormee Automotive Electronics Control Technologies Co., Ltd |
| Number of leaf spring | 8/4+6, 11/9+7, 7/4+6 | Number of tire | 6 |
| Tire | 7.00R16LT 14PR, 7.00-16LT 14PR | ||
| Front wheel track | 1440 | Rear wheel track | 1425, 1395 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| WP3Q130B50 | Weichai Power Yangzhou Diesel Engine Co., Ltd | 2970 | 96 |
| HFC4DF1-2D2 | Hefei Jianghuai Chaochai Power Co., Ltd | 2544 | 86 |
| D25TCIE1 | Kunming Yunnei Power Co., Ltd | 2499 | 105 |
| HFC4DA1-2D | Anhui Jianghuai Automobile Co., Ltd | 2771 | 88 |
| | |||
|
|
|
|
|
