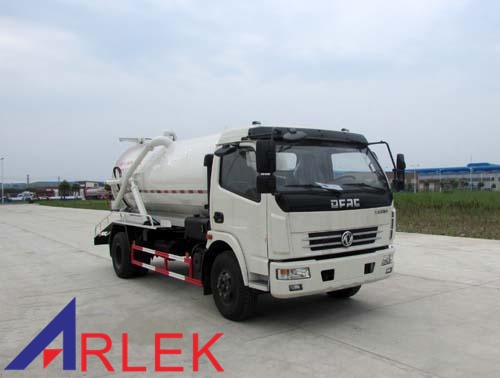

| Sewage suction truck | |||
| Technical parameters | |||
| External dimensions | 6550×2100，2280×2950 | ||
| Total mass | 11450 |
|
|
| Rated load | 5400 |
|
|
| Curb mass | 5855 |
|
|
| Approach/departure angle | 21/17 | Front/rear overhang | 1130/1620，1150/1600 |
| Number of axle | 2 | Wheel base | 3800 |
| Axle load | 4360/7090 | Max. driving speed | 103 |
| Remarks | Tank effective volume:7.0 cubic meter Tank external dimensions(mm): straight section length is 3800, diameter is1550. The side protection and rear protection adopt cold-formed profile steel Q235, the side protection adopts bolted connection, the rear protection adopts welded connection, the sectional area is 200×50mm, the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | DFAC | Chassis model | EQ1110SJ8BDC |
| |
| ABS | ABS model:ABS/ASR-24V-4S/4M Xiangyang Dongfeng Longcheng Machinery Co., Ltd |
| Number of leaf spring | 8/10+7 | Number of tire | 6 |
| Tire | 8.25R20 14PR, 245/70R19.5 | ||
| Front wheel track | 1745 | Rear wheel track | 1620 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| CY4SK251 | Dongfeng Chaoyang Diesel Co., Ltd | 3856 | 115 |
| YC4S150-50 | Guangxi Yuchai Machinery Co., Ltd | 3767 | 110 |
| ISF3.8s5154 | Beijing Foton Cummins Engine Co., Ltd | 3760 | 115 |
| 4DX23-140B5 | FAW Liberated Automobile Co., Ltd Wuxi Diesel Engine Plant | 3857 | 105 |
| YN38CRE1 | Kunming Yunnei Power Co., Ltd | 3760 | 95 |
| YC4Y22-15050 | Guangxi Yuchai Machinery Co., Ltd | 2169 | 110 |
| | |||
|
|
|
|
|
