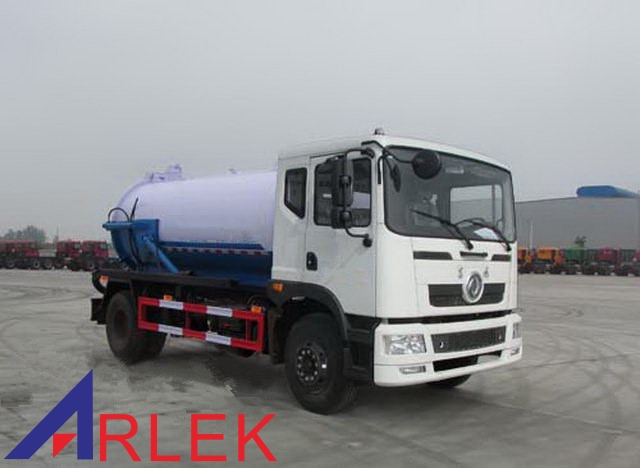

| Sewage suction truck | |||
| Technical parameters | |||
| External dimensions | 8500，8700×2480×3350 | ||
| Total mass | 16000 |
|
|
| Rated load | 8540，8605 |
|
|
| Curb mass | 7265 |
|
|
| Approach/departure angle |
| Front/rear overhang |
|
| Number of axle | 2 | Wheel base | 3650, 3800, 3950, 4200, 4500, 4700, 5150, 5400, 5700, 3400 |
| Axle load | 5600/10400 | Max. driving speed | 90 |
| Remarks | Tank effective volume: 11.2 cubic meter Tank external dimensions(mm): straight section length is 5000, diameter is 1800. The side protection and rear protection adopt cold-formed profile steel Q235, the side protection adopts bolted connection, the rear protection adopts welded connection, the sectional area is 300×50mm, the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | Dongfeng Commercial Vehicle Co., Ltd | Chassis model | EQ1160GZ5DJ |
| |
| ABS | ABS model:3631010-C2000 Knorr-Bremse DETC (Shiyan) |
| Number of leaf spring | 9/10+8 | Number of tire | 6 |
| Tire | 9.00-R20 16PR, 10R22.5 16PR, 10.00-20 16PR, 10.00R20 16PR | ||
| Front wheel track | 1940, 1900, 1810, 1965 | Rear wheel track | 1860, 1800, 1800, 1860 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| YC4EG160-50 | Guangxi Yuchai Machinery Co., Ltd | 4730 | 118 |
| ISD185 50 | Dongfeng Cummins Engine Co., Ltd | 4500 | 136 |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd | 6700 | 155 |
| YC6JA180-50 | Guangxi Yuchai Machinery Co., Ltd | 6870 | 132 |
| ISB170 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 125 |
| ISB180 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 132 |
| ISB190 50 | Dongfeng Cummins Engine Co., Ltd | 5900 | 140 |
| | |||
|
|
|
|
|
