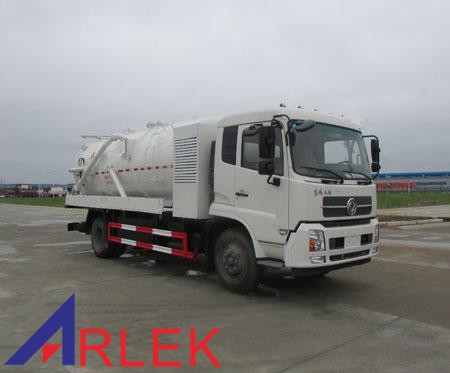

Sewage suction truck

Technical parameters

External dimensions

8500, 8700×2495×3550

Total mass

15600

Rated load

8250

Curb mass

7155

Approach/departure angle

20/12

Front/rear overhang

1430/2570

Number of axle

2

Wheel base

3800, 4200, 4500, 4700, 5000

Axle load

5800/10000

Max. driving speed

98

Remarks

Tank effective volume: 10.8 cubic meter;

Tank external dimensions(mm): straight section length is 5000, diameter is 1800。

The side protection and rear protection adopt cold-formed profile steel Q235, the side protection adopts bolted connection, and the rear protection adopts welded connection, the sectional area is 270×50mm, the lower edge is 500mm above the ground.

Chassis

Chassis manufacturer

Dongfeng Commercial Vehicle Co., Ltd

Chassis model

DFL1160BX1V

ABS

ABS model:3631010-C2000

Knorr-Bremse DETC (Shiyan)

Number of leaf spring

7/9+6, 8/10+8

Number of tire

6

Tire

9.00-20, 9.00R20, 10.00-20, 10.00R20, 10R22.5, 275/80R22.5, 275/70R22.5, 295/80R22.5

Front wheel track

1880, 1900, 1920

Rear wheel track

1800, 1860, 1820

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

ISD210 50

Dongfeng Cummins Engine Co., Ltd

6700

155

ISD190 50

Dongfeng Cummins Engine Co., Ltd

6700

144

ISB180 50

Dongfeng Cummins Engine Co., Ltd

4500

132

EQH180-52

Dongfeng Commercial Vehicle Co., Ltd

4752

132

EQH180-53

Dongfeng Commercial Vehicle Co., Ltd

4752

132

ISB180 50

Dongfeng Cummins Engine Co., Ltd

5900

132

ISD270 50

Dongfeng Cummins Engine Co., Ltd

6700

198

ISB210 50

Dongfeng Cummins Engine Co., Ltd

5900

155

ISB190 50

Dongfeng Cummins Engine Co., Ltd

5900

140
