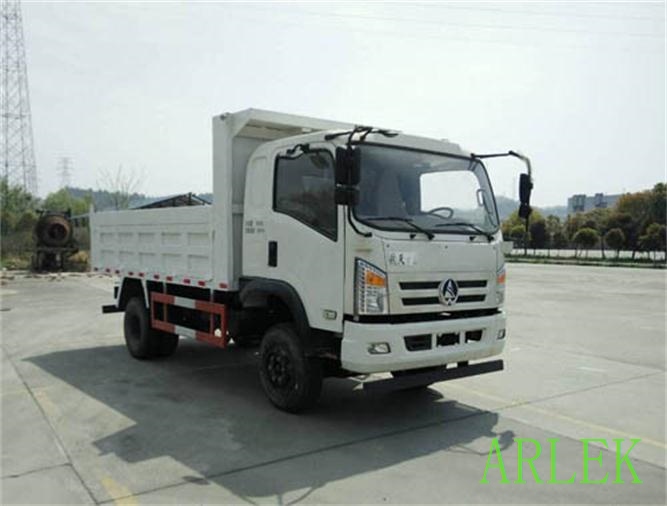

Cargo truck

Technical parameters

External dimensions

5995×2200, 2300×2670

Cargo box dimensions

3800, 4000, 4150×2100, 2200×400, 500

Total mass

4295

Rated load

1650

Curb mass

2450

Approach/departure angle

13/18

Front/rear overhang

1260/1435

ABS

contained

Front sea passenger

3 persons

Number of axle

2

Wheel base

3000, 3300, 3400, 3600

Axle load

1900/2395

Max. driving speed

90

Front wheel track

1880, 1770

Rear wheel track

1750, 1610

Fuel consumption

12.31(YC4FA115-50)

12.56(YC4E140-56)

Number of leaf spring

8/9+7, 9/10+8

Number of tire

6

Tire

8.25-16LT 6PR, 8.25R16LT 6PR

Remarks

The protection adopts Q235 steel with bolted connection, the lower edge of the rear protection is 480mm above the ground, and the sectional size is 120×40mm.

The single-row driver's cab, sunshield panel and front panel shall be selected along with the chassis.

Only the wheel base of 3300mm and the engines YC4FA115-50, YC4E140-56 can be selected.

Chassis parameters

Chassis brand

Wanshan brand

Chassis model

WS1041GJ

Dimensions

length:5310, 5750, 5850;

width:2130, 2280;

height:2600

ABS

ABS model: 446004****

WABCO, China

Number of leaf spring

8/9+7, 9/10+8

Number of tire

6

Tire

8.25-16LT 6PR, 8.25R16LT 6PR

Front wheel track

1880, 1770

Rear wheel track

1750, 1610

Total mass

4490

Curb mass

1890

Approach/departure angle

13/25

Front/rear overhang

1260/1050, 1260/1190, 1260/990

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

YC4FA115-50

Guangxi Yuchai Machinery Co., Ltd

2982

85

YC4E140-56

Guangxi Yuchai Machinery Co., Ltd

4260

103

WP4.1Q160E50

Weichai Power Yangzhou Diesel Engine Co., Ltd

4088

115

Identification code

LWSF111DXXXXXXXXX  LWSF131DXXXXXXXXX
