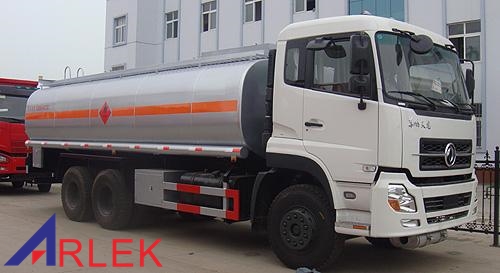

Fuel tank truck

Product：

Fuel tank truck

External dimensions (mm)：

9900×2500×3450,3690

Chassis model：

DFL1250A8

Cargo box dimensions：

Total mass：(kg)

25000

Approach/departure angle

(° )

20/16

Rated load：(kg)

13500,13565

Front/rear overhang (mm)：

1460/2350,1460/2300

Curb mass：(kg)

11305

Max. driving speed (km/h)：

90

Axle load：

7000/18000 (tandem axle)

Chassis

Chassis model：

DFL1250A8

Batch number：

209

Number of axle：

3

Fuel：

Diesel

Wheel base (mm)：

4350+1300,4350+1350

Front wheel track (mm)：

1986

Number of passengers in the driver's cab：

2,3

Rear wheel track (mm)：

1860/1860

Number of tire：

10

Number of leaf spring：

8/9,8/10

Tire：

10.00-20,10.00R20,11.00-20,11.00R20

Remarks：

Transported goods:gasoline, density:0.7ton/m³

Tank effective volume:20.24m³, tank external dimensions (length×long axis×short axis)(mm)7200×2460×1700.

Only ISDe245 30 and C245 33 engine can be used.

High top driver's cab can be selected along with the chassis, the corresponding entire vehicle height is 3690mm.

Engine

Engine model

Engine manufacturer

Displacement（ml）

Power（kW）

ISDe230 30

ISDe245 30

ISDe270 30

C245 33

C230 33

C260 33

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

6700

6700

6700

8300

8300

8300

169

180

198

180

170

191
