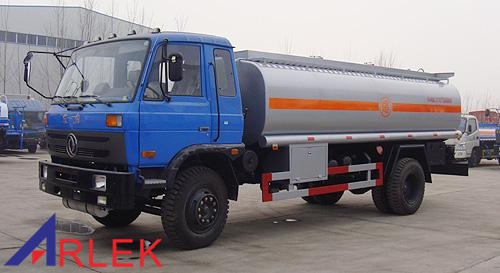

Fuel tank truck

Product：

Fuel tank truck

External dimensions (mm)：

8600,9000×2490×3150

Chassis model：

EQ5161GFJ6

Cargo box dimensions：

Total mass：(kg)

15700

Approach/departure angle

(° )

32/17,32/15

Rated load：(kg)

9000

Front/rear overhang (mm)：

1245/2255,1245/2655

Curb mass：(kg)

6505

Max. driving speed (km/h)：

85

Axle load：

5900/9800,5700/10000

Chassis

Chassis model：

EQ5161GFJ6

Batch number：

216

Number of axle：

2

Fuel：

Diesel

Wheel base (mm)：

4700,5100

Front wheel track (mm)：

1940

Passengers in driver's cab：

3

Rear wheel track (mm)：

1860

Number of tire：

6

Number of leaf spring：

9/14+10

Tire：

9.00-20,9.00R20,10.00-20,10.00R20

Remarks：

Transported goods: gasoline, density:0.7ton/m³

Tank effective volume:13.49m³, tank external dimensions (length×long axis×short axis) (mm):5800×2300×1500, 6300×2280×1400.

Only B170 30, YC6J170-33, B190 33 engines can be selected.
