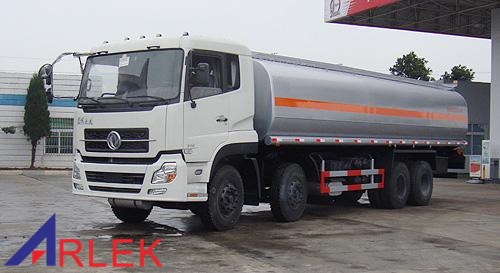

| Fuel tank truck | |||
| Product： | Fuel tank truck | External dimensions (mm)： | 11990×2500×3160,3690 |
| Chassis model： | DFL1311A3 | Cargo box dimensions： | |
| Total mass ：(kg) | 31000 | Approach/departure angle (° ) | 28/12,28/13,28/14 |
| Rated load：(kg) | 16265,16200 | Front/rear overhang (mm)： | 1460/2515,1460/2465,1460/2265, |
| Curb mass：(kg) | 14605 | Max. driving speed (km/h)： | 90 |
| Axle load： | 6500/6500/18000(tandem axle) | ||
| Chassis | |||
| Chassis model： | DFL1311A3 | Batch number： | 215 |
| Number of axle： | 4 | Fuel： | Diesel |
| Wheel base (mm)： | 1950+4250+1300,1950+4250+1350,1950+4500+1300, | Front wheel track (mm)： | 1940/1940,1986/1986 |
| Passengers in driver's cab： | 2,3 | Rear wheel track (mm)： | 1860/1860 |
| Number of tire： | 12 | Number of leaf spring： | 8/8/10,3/3/4 |
| Tire： | 10.00-20,10.00R20,11.00-20,11.00R20 | ||
| Remarks： | Transported goods: gasoline, density 0.7ton/m3 Tank effective volume:24.29m3, tank external dimensions (length×long axis×short axis)(mm):9100×2410×1640 High top driver's cab can be selected along with the chassis. The front lower view mirror installation position can be selected along with the chassis. | ||
| Engine | |||
| Engine model | Engine manufacturer | Displacement（ml） | Power（kW） |
| ISDe270 30 ISDe245 30 ISLe290 30 L270 30 L290 30 C245 33 C260 33 YC6L270-33 dCi290-30 | Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd DFAC | 6700 6700 8900 8900 8900 8300 8300 8424 11120 | 198 180 213 199 213 180 191 199 213 |
