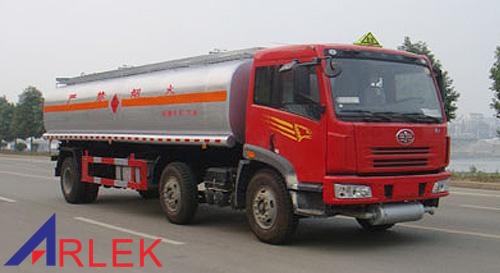

| Fuel tank truck | |||
| Product | Fuel tank truck | External dimensions (mm)： | 9650×2490×3250 |
| Chassis model | CA5250GJYPK2E3L4T3A95 | Cargo box dimensions | |
| Total mass ：(kg) | 25000 | Approach/departure angle (° ) | 22/23 |
| Rated load：(kg) | 14980,15045 | Front/rear overhang (mm)： | 1272/2125 |
| Curb mass：(kg) | 9825 | Max. driving speed (km/h)： | 80 |
| Axle load： | 6825/6825/11350 | ||
| Chassis | |||
| Chassis model： | CA5250GJYPK2E3L4T3A95 | Batch number： | 192 |
| Number of axle： | 3 | Fuel | Diesel |
| Wheel base (mm)： | 1860+4140 | Front wheel track (mm)： | 1930/1930 |
| Passengers in driver's cab： | 2,3 | Rear wheel track (mm)： | 1860 |
| Number of tire： | 8 | Number of leaf spring： | 10/10/14+9,10/10/8+9 |
| Tire： | 10.00-20,11.00-20 | ||
| Remarks： | Transported goods: gasoline , density :700kg/m3 Tank external dimensions (length×long axis×short axis)(mm): 7100×2460×1720 When 2 passengers in driver's cab is allowed, the rated load is 15045kg, the tank effective volume is 22.5 cubic meters. When 3 passengers in driver's cab is allowed, the rated load is 14980kg, the tank effective volume is 22.4 cubic meters. The driver's cab shall be selected along with the chassis. | ||
| Engine | |||
| Engine model | Engine manufacturer | Displacement（ml） | Power（kW） |
| CA6DF3-22E3 CA6DF3-20E3 CA6DF3-22E3F CA6DF3-20E3F | FAW Liberated Automobile Co., Ltd. Wuxi Diesel Engine Plant | 6740 6740 7120 7120 | 171 155 165 150 |
