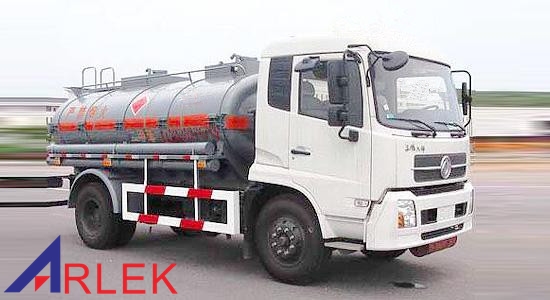

| Chemical liquid truck | |||
| Product： | Chemical liquid truck | External dimensions (mm)： | 7990×2450×3050 |
| Chassis model： | DFL1160BX2 | Cargo box dimensions: | ×× |
| Total mass：(kg) | 16000 | Approach/departure angle (° ) | 20/18 |
| Rated mass：(kg) | 8000 | Front/rear overhang (mm)： | 1430/1860 |
| Curb mass：(kg) | 7805 | Max. driving speed (km/h)： | 90 |
| Axle load： | 6000/10000 | ||
| Chassis | |||
| Chassis model： | DFL1160BX2 | Batch number： | 195 |
| Number of axle： | 2 | Fuel： | Diesel |
| Wheel base (mm)： | 4500,4200 | Front wheel track (mm)： | 1880 |
| Passengers in driver's cab： | 3 | Rear wheel track (mm)： | 1800,1860 |
| Number of tire： | 6 | Number of leaf spring： | 7/9+6,8/10+8 |
| Tire： | 9.00-20,9.00R20,10.00-20,10.00R20 | ||
| Remarks： | Tank effective volume:12.7m3 Tank external dimensions (mm)5300×2300×1530 Transported goods:hexane, density:660kg/m3 When wheel base is 4200mm, rear overhang is 2360mm | ||
| Engine | |||
| Engine model | Engine manufacturer | Displacement（ml） | Power（kW） |
| ISDe180 30 ISDe185 30 ISDe210 30 B190 33 YC6J200-33 EQH180-33 | Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd DFAC Commercial Vehicle Engine plant | 4500 6700 6700 5900 6494 4752 | 132 136 155 140 147 132 |
