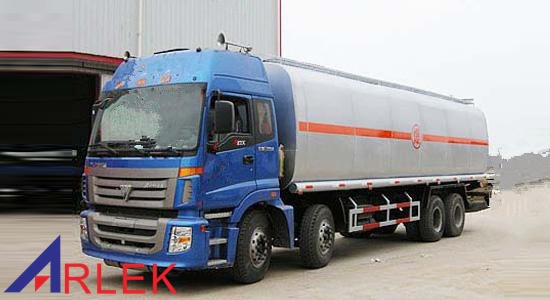

| Liquid chemical truck | |||
| Product： | Liquid chemical truck | External dimensions (mm)： | 11900×2500×3550,3350 |
| Chassis model： | BJ1317VNPJJ-S5 | Cargo box dimensions： | |
| Total mass ：(kg) | 31000 | Approach/departure angle (° ) | 13/11 |
| Rated load：(kg) | 15000 | Front/rear overhang (mm)： | 1555/2350 |
| Curb mass：(kg) | 15805 | Max. driving speed (km/h)： | 90 |
| Axle load： | 6680/6820/17500 ( tandem axle) | ||
| Chassis | |||
| Chassis model： | BJ1317VNPJJ-S5 | Batch number： | 188 |
| Number of axle： | 4 | Fuel： | Diesel |
| Wheel base (mm)： | 1800+4700+1350 | Front wheel track (mm)： | 1930/1930 |
| Passengers in driver's cab： | 3 | Rear wheel track (mm)： | 1847/1847 |
| Number of tire： | 12 | Number of leaf spring： | 13/14/12 |
| Tire： | 10.00-20,10.00R20,11.00-20,11.00R20 | ||
| Remarks： | Tank effective volume:23.8m3 Tank external dimensions(length×width×height)(mm):9100×2400×1550 Transported goods: hexane, density:660kg/m3 The driver's cab can be selected along with the chassis. | ||
| Engine | |||
| Engine model | Engine manufacturer | Displacement（ml） | 功率（kw） |
| SC8DK260Q3 SC8DK280Q3 WP10.270NE31 WP10.290NE31 WP10.310NE31 WP10.310 | Shanghai Diesel Engine Co., Ltd Shanghai Diesel Engine Co., Ltd Weichai Power Co., Ltd Weichai Power Co., Ltd Weichai Power Co., Ltd Weichai Power Co., Ltd | 8270 8270 9726 9726 9726 9726 | 192 206 199 213 228 228 |
