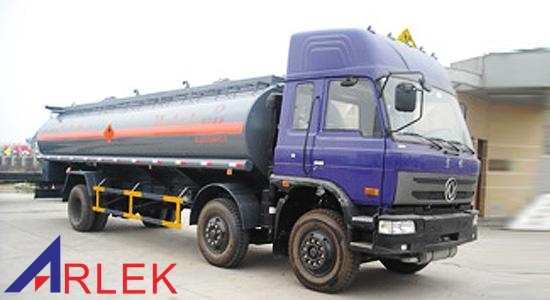

Chemical liquid truck

Product：

Chemical liquid truck

External dimensions (mm)：

10800×2490×3500

Chassis model：

EQ5253GFJ3

Cargo box dimensions：

Total mass ：(kg)

24900

Approach/departure angle

(° )

34/20,34/20

Rated load：(kg)

13800

Front/rear overhang (mm)：

1205/2755,1205/2755

Curb mass：(kg)

10905

Max. driving speed (km/h)：

85

Axle load：

6970/6970/10960,6950/6950/11000

Chassis

Chassis model：

EQ5253GFJ3

Batch number：

205

Number of axle：

3

Fuel：

Wheel base (mm)：

1950+4550,1950+4750

Front wheel track (mm)：

1940/1940

Passengers in driver's cab：

3

Rear wheel track (mm)：

1860

Number of tire：

8

Number of leaf spring：

10/10/12+9

Tire：

10.00-20,10.00R20

Remarks：

Transported goods:pentane ;density:0.62tone/m³;

Tank effective volume:22.99m³; sectional area:3.10m²;

Tank external dimensions(length×long axis×short axis)(mm):8100×2400×1650.

The driver's cab can be selected along with the chassis.
