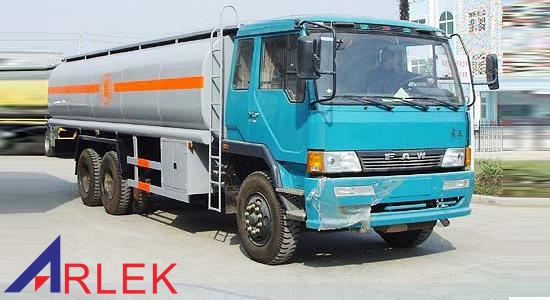

| Chemical liquid truck | |||
| Product： | Chemical liquid truck | External dimensions (mm)： | 9990×2450×3350 |
| Chassis model： | CA1253P7K2L7T1E | Cargo box dimensions： | |
| Total mass ：(kg) | 25000 | Approach/departure angle (° ) | 20/11,21/11 |
| Rated load：(kg) | 13600 | Front/rear overhang (mm)： | 1375/2440,1400/2500 |
| Curb mass：(kg) | 11205 | Max. driving speed (km/h)： | 85 |
| Axle load： | 7000/18000 (tandem axle) | ||
| Chassis | |||
| Chassis model： | CA1253P7K2L7T1E | Batch number： | 188 |
| Number of axle： | 3 | Fuel： | Diesel |
| Wheel base (mm)： | 4725+1350,4800+1350 | Front wheel track (mm)： | 1914,1950 |
| Passengers in driver's cab： | 3 | Rear wheel track (mm)： | 1847/1847 |
| Number of tire： | 10 | 弹簧片数： | 4/10,11/11 |
| Tire： | 9.00R20,9.00-20,10.00R20,10.00-20 | ||
| Remarks： | Tank effective volume:21.6m3 Tank external dimensions (length×width×height)(mm)7200×2400×1650, Transported goods: hexane, density:660kg/m3. The driver's cab can be selected with the chassis. | ||
| Engine | |||
| Engine model | Engine manufacturer | Displacement（ml） | Power（kW） |
| CA6DE3-22E3 CA6DF3-22E3 BF6M2012-22E3 | China FAW Group FAW Librated Automobile Co., Ltd. Wuxi Diesel Engine Plant China FAW Group | 6618 6740 6060 | 162 162 162 |
