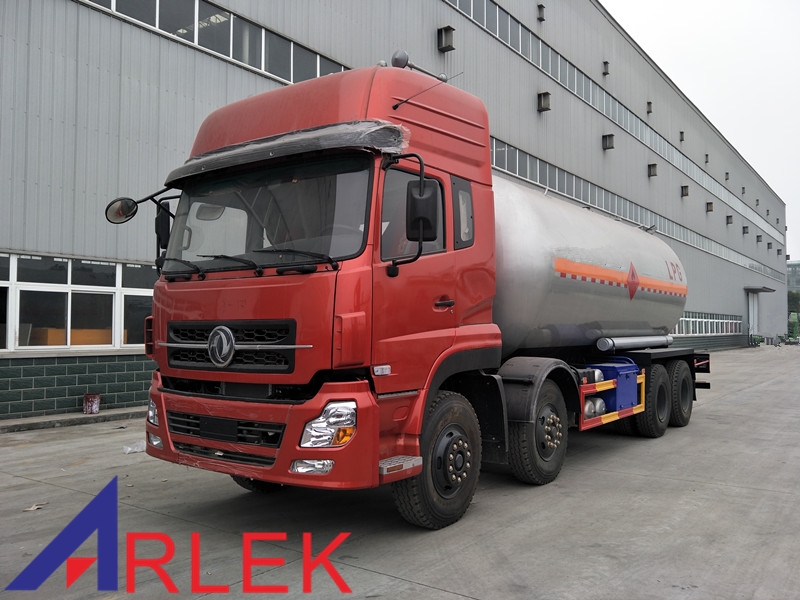

| LPG tank truck | |||
| Technical parameters | |||
| External dimensions | 10700×2500×3770 | ||
| Total mass | 31000 |
|
|
| Rated load | 14870 |
|
|
| Curb mass | 16000 |
|
|
| Approach/departure angle | 28/13 | Front/rear overhang | 1435/2265 |
| Number of axle | 4 | Wheel base | 1850+3800+1350 |
| |
| Max. driving speed | 80 |
| Remarks | Tank effective volume:25.8m3 Tank external dimensions（length×diameter）（mm）：6765×2250; | ||
| Chassis | |||
| Chassis brand | Dongfeng | Chassis model | DFL1311A13 |
| External dimensions |
| ||
| |
| |
|
| Number of leaf spring | 9/9/10 | Number of tire | 12 |
| Tire | 11.00R22.5 | ||
| Front wheel track | 1940/1940 | Rear wheel track | 1890/1890 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard |
|
| Engine model | Engine manufacturer | Displacement | Power |
| ISC8.3-292E40A | Dongfeng Cummins Engine Co., Ltd | 8300 | 215 |
| ISC8.3-270E40A | Dongfeng Cummins Engine Co., Ltd | 8300 | 198 |
