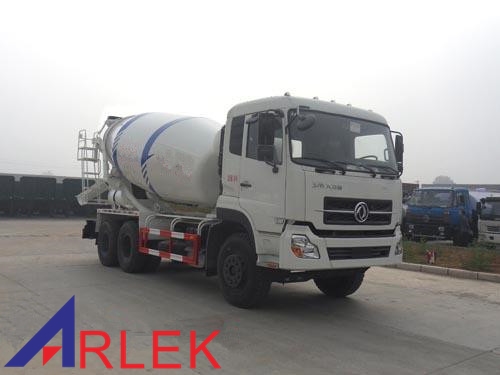

| Concrete mixer truck | |||
| Technical parameters | |||
| External dimensions | 9200, 9350, 9800×2500×3990 | ||
| Total mass | 25000 |
|
|
| Rated load | 10870, 10805 |
|
|
| Curb mass | 14000 |
|
|
| Approach/departure angle | 30/12 | Front/rear overhang | 1500/2700, 1500/2950 |
| Number of axle | 3 | Wheel base | 3650+1350, 3800+1350, 4000+1350, 3800+1450 |
| Axle load | 7000/18000 （tandem axle） | Max. driving speed | 90 |
| Remarks | The mixing tank volume is 5.0 cubic meter. The side protection adopts cold-formed channel steel Q235-A with bolted connection, the rear protection adopts cold-formed channel steel Q235-A with welded connection, and the lower edge is 400mm above the ground. | ||
| Chassis | |||
| Chassis brand | Dongfeng brand | | DFL5251GJBA4 |
| External dimensions | 7980, 8150, 8550, 7650×2500×3030 | ||
| Approach/departure angle | 30/34, 30/33, 30/31 | |
|
| Number of leaf spring | 8/12, 9/13, 10/12, 10/13 | Number of tire | 10 |
| Tire | 11.00-20, 11.00R20, 12.00-20, 12.00R20 | ||
| Front wheel track | 2050 | Rear wheel track | 1850/1850 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro IV |
| Engine model | Engine manufacturer | Displacement | Power |
| dCi350-40 | DFAC | 11120 | 257 |
| dCi385-40 | DFAC | 11120 | 283 |
| ISLe340 40 | Dongfeng Cummins Engine Co., Ltd | 8900 | 250 |
| ISLe375 40 | Dongfeng Cummins Engine Co., Ltd | 8900 | 276 |
| ISL9.5-340E40A | Dongfeng Cummins Engine Co., Ltd | 9460 | 251 |
| ISL9.5-375E40A | Dongfeng Cummins Engine Co., Ltd | 9460 | 276 |
