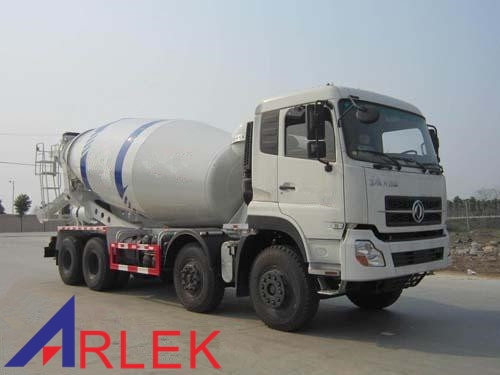

| Concrete mixer truck | |||
| Technical parameters | |||
| External dimensions | 10550, 10900×2500×3990 | ||
| Total mass | 31000 |
|
|
| Rated load | 13490 |
|
|
| Curb mass | 17380 |
|
|
| Approach/departure angle | 25/10 | Front/rear overhang | 1500/2450, 1500/2800 |
| Number of axle | 4 | Wheel base | 1850+3400+1350 |
| Axle load | 6500/6500/18000 （tandem axle） | Max. driving speed | 90 |
| Remarks | The mixing tank volumen is 6.0 cubic meter. The side protection adopts cold-formed channel steel Q235-A with bolted connection, the rear protection adopts cold-formed channel steel Q235-A with welded connection, and the lower edge，焊接连接，下边缘离地高度500mm。 | ||
| Chassis parameter | |||
| Chassis brand | Dongfeng brand | Chassis model | DFL5310GJBA1 |
| External dimensions | 9800×2500×3130 | ||
| Approach/departure angle | 25/25 | |
|
| Number of leaf spring | 9/9/13, 10/10/13 | Number of tire | 12 |
| Tire | 11.00R20 18PR, 11.00-20 18PR, 12.00R20 16PR, 12.00-20 16PR | ||
| Front wheel track | 2040/2040 | Rear wheel track | 1850/1850 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro IV |
| Engine model | Engine manufacturer | Displacement | Power |
| ISLe375 40 | Dongfeng Cummins Engine Co., Ltd | 8900 | 276 |
| dCi350-40 | DFAC | 11120 | 257 |
| dCi385-40 | DFAC | 11120 | 283 |
| dCi420-40 | DFAC | 11120 | 303 |
