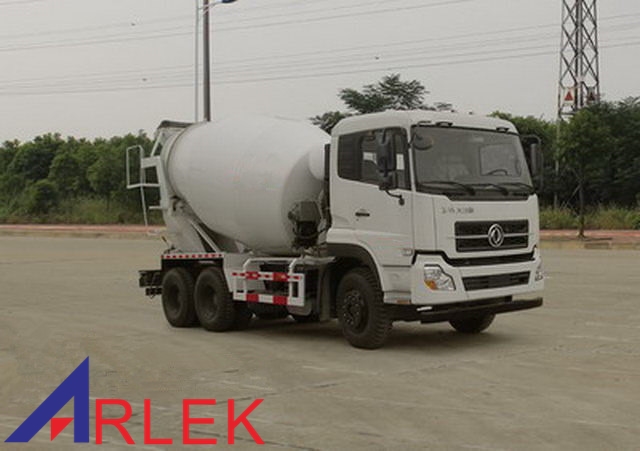

| Concrete mixer truck | |||
| Technical specification | |||
| External dimensions | 9780, 9980×2500×3990, 3900 | ||
| Total mass | 24900 |
|
|
| Rated load | 10770, 10705 |
|
|
| Curb mass | 14000 |
|
|
| Approach/departure angle | 30/13 | Front/rear overhang | 1500/3130 |
| Number of axle | 3 | Wheel base | 3800+1350, 4000+1350 |
| Axle load | 6950/17950 （tandem axle） | Max. driving speed | 85 |
| Remarks | The mixing tank volume is 5.0 cubic meter. The side protection and the rear protection adopt cold-formed channel steel Q235-A, the lower edge is 540mm above the ground. | ||
| Chassis parameters | |||
| Chassis brand | Dongfeng brand | Chassis model | DFL5310GJBA1 |
| External dimensions | 8350，8550×2500×3030 | ||
| Approach/departure angle | 30/30 | |
|
| Number of leaf spring | 10/13, 9/13 | Number of tire | 10 |
| Tire | 11.00R20 16PR, 11.00-20 18PR, 12.00R20 14PR, 12.00-20 16PR | ||
| Front wheel track | 2040 | Rear wheel track | 1850/1850 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro IV |
| Engine model | Engine manufacturer | Displacement | Power |
| EQRN385-40 | DFAC | 11120 | 283 |
| EQRN350-40 | DFAC | 11120 | 257 |
| YC6MK375N-40 | Guangxi Yuchai Machinery Co., Ltd | 10338 | 276 |
| YC6MK340N-40 | Guangxi Yuchai Machinery Co., Ltd | 10338 | 250 |
