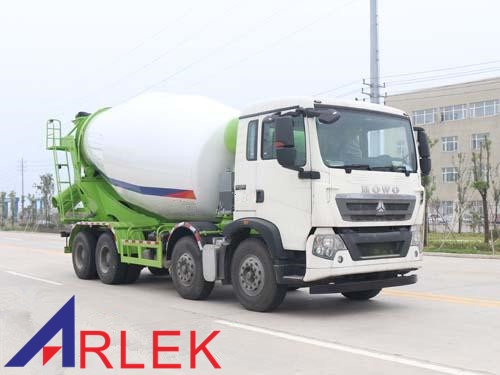

Concrete mixer truck

Technical parameters

External dimensions

9800, 10350×2500, 2550×3998

Total mass

31000

Rated load

16370

Curb mass

14500

Approach/departrue angle

19/16

Front/rear overhang

1430/2170, 1430/2145, 1430/2720, 1430/2695

Number of axle

4

Wheel base

1800+3025+1400, 1800+3050+1350

Axle load

6500/7000/17500

 (2-axle group)

Max. driving speed

82

Remarks

The mixer volume is 7.49 cubic meter.

The side protection adopts cold-formed channel steel Q235 with bolted connection, and the rear protection adopts cold-formed channel steel Q235 with welded connection, the lower edge is 500mm above the ground.

Chassis

Chassis model

ZZ1317N306GE1

ABS

4460046300

WEBCO, China

Number of leaf spring

11/11/10，3/3/4, 11/11/-, 3/3/-, 3/3/5

Number of tire

12

Tire

12R22.5, 11.00R20

Front wheel track

2015/2015, 2035/2035

Rear wheel track

1850/1850

Fuel consumption（L/100km）

Fuel

Diesel

Emission standard

Euro V

Engine model

Engine manufacturer

Displacement

Power

MC07.31-50

China National Heavy Duty Truck Group Co., Ltd

6870

228

MC07.34-50

China National Heavy Duty Truck Group Co., Ltd

6870

248

MC07.35-50

China National Heavy Duty Turck Group Co., Ltd

6870

254
