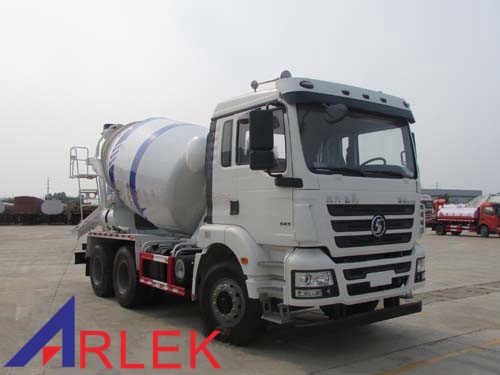

| Concrete mixer truck | |||
| Technical parameters | |||
| External dimensions | 8400×2500×3850 | ||
| Total mass | 25000 |
|
|
| Rated load | 12965, 12900 |
|
|
| Curb mass | 11905 |
|
|
| Approach/departure angle | 10/12 | Front/rear overhang | 1485/2365 |
| Number of axle | 3 | Wheel base | 3150+1400 |
| Axle load | 7000/18000 (2-axle group) | Max. driving speed | 80 |
| Remarks | Mixing volume: 5.9 cubic meter The side protection adopts cold formed channel steel Q235 with bolted connection; and the rear protection adopts cold formed channel steel Q235 with welded connction, the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis manufacturer | Shannxi Automobile Group Co., Ltd | Chassis model | SX5250GJBMB4 |
| External dimensions |
| ||
| |
| ABS | ZQFB-V, CM4XL-4S/4K, VIEABS-Ⅱ Xi'an King-truck Electron Co., Ltd |
| Number of leaf spring | 3/-, 3/5, 10/12, 3/-/-, 10/10 | Number of tire | 10 |
| Tire | 295/80R22.5, 11.00R20 | ||
| Front wheel track | 2036, 2011 | Rear wheel track | 1860, 1860 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| WP7.270E51 | Weichai Power Co., Ltd | 7470 | 199 |
| WP7.300E51 | Weichai Power Co., Ltd | 7470 | 220 |
| WP6.245E50 | Weifang Weichai Deutz Diesel Engine Co., Ltd | 6750 | 180 |
