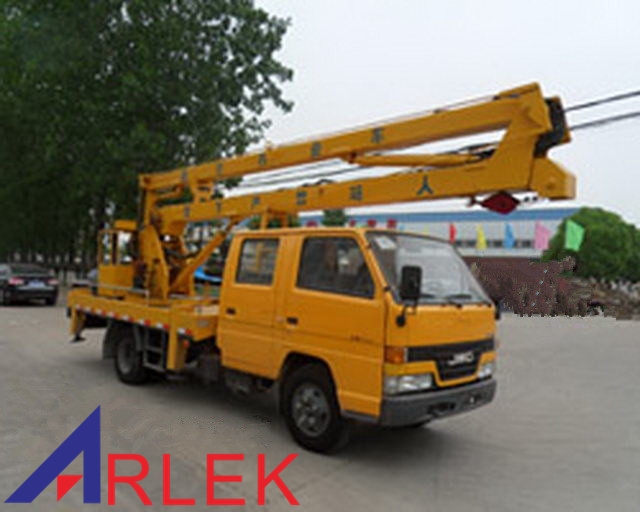

| Aerial work platform truck | |||
| Technical parameters | |||
| External dimensions | 7600×2000×3050 | ||
| Total mass | 5835 |
|
|
| Rated load |
|
|
|
| Curb mass | 5510 |
|
|
| Approach/departure angle | 27/14 | Front/rear overhang | 1015/2155 |
| Number of axle | 2 | Wheel base | 3360 |
| Axle load | 1940/3895 | Max. driving speed | 90 |
| Remarks | The forward distance of the special equipment is 1070mm. The side protection adopts Q235 cold-formed channel steel with bolted connection, the rear protection connected with the special equipment into an integral, the lower edge is 500mm above the ground. | ||
| Chassis | |||
| Chassis brand | Jiangling brand | Chassis model | JX1060TSG24 |
| External dimensions | 5850×1880×2020 | ||
| Approach/departure angle | 27/18.5 | ABS |
|
| Number of leaf spring | 7/5+5 | Number of tire | 6 |
| Tire | 7.00R16LT | ||
| Front wheel track | 1385 | Rear wheel track | 1425 |
| Fuel consumption（L/100km） |
| Max. driving speed |
|
| Fuel | Diesel | Emission standard | Euro IV |
| Engine model | Engine manufacturer | Displacement | Power |
| JX493ZLQ4 | Jiangling Motors Corporation Ltd. | 2771 | 80 |
| | |||
|
|
|
|
|
