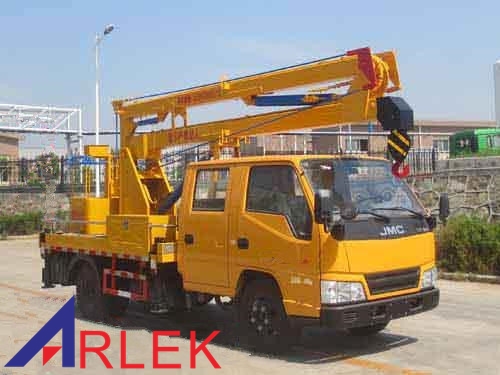

| Aerial work platform truck | |||
| Technical parameters | |||
| External dimensions | 5995×1980×2990 | ||
| Total mass | 4495 |
|
|
| Rated load |
|
|
|
| Curb mass | 4170 |
|
|
| Approach/departure angle |
| Front/rear overhang |
|
| Number of axle | 2 | Wheel base | 3360 |
| Axle load | 1720/2775 | Max. driving speed | 100 |
| Remarks | Forward distance is 200mm, with the chassis optional cab. The side protection and rear protection adopt Q235A cold-formed steel，the side protection adopts bolted connection, and the rear protection adopts welded connection, and the lower edge is 450mm above the ground. | ||
| Chassis | |||
| Chassis brand | Jiangling Motors Corporation, Ltd | Chassis model | JX1041TSG25 |
| External dimensions |
| ||
| Approach/departure angle |
| ABS | ABS model: APG3550500A Zhejiang Asia-pacific Mechanical & Electronic Co., Ltd |
| Number of leaf spring | 7/4+6, 7/5+6 | Number of tire | 6 |
| Tire | 7.00R16LT 8PR | ||
| Front wheel track | 1385 | Rear wheel track | 1425 |
| Fuel consumption（L/100km） |
| |
|
| Fuel | Diesel | Emission standard | Euro V |
| Engine model | Engine manufacturer | Displacement | Power |
| JX493ZLQ5 | Jiangling Motors Corporation, Ltd | 2771 | 85 |
| JX493ZLQ5A | Jiangling Motors Corporation, Ltd | 2771 | 85 |
| | |||
|
|
|
|
|
